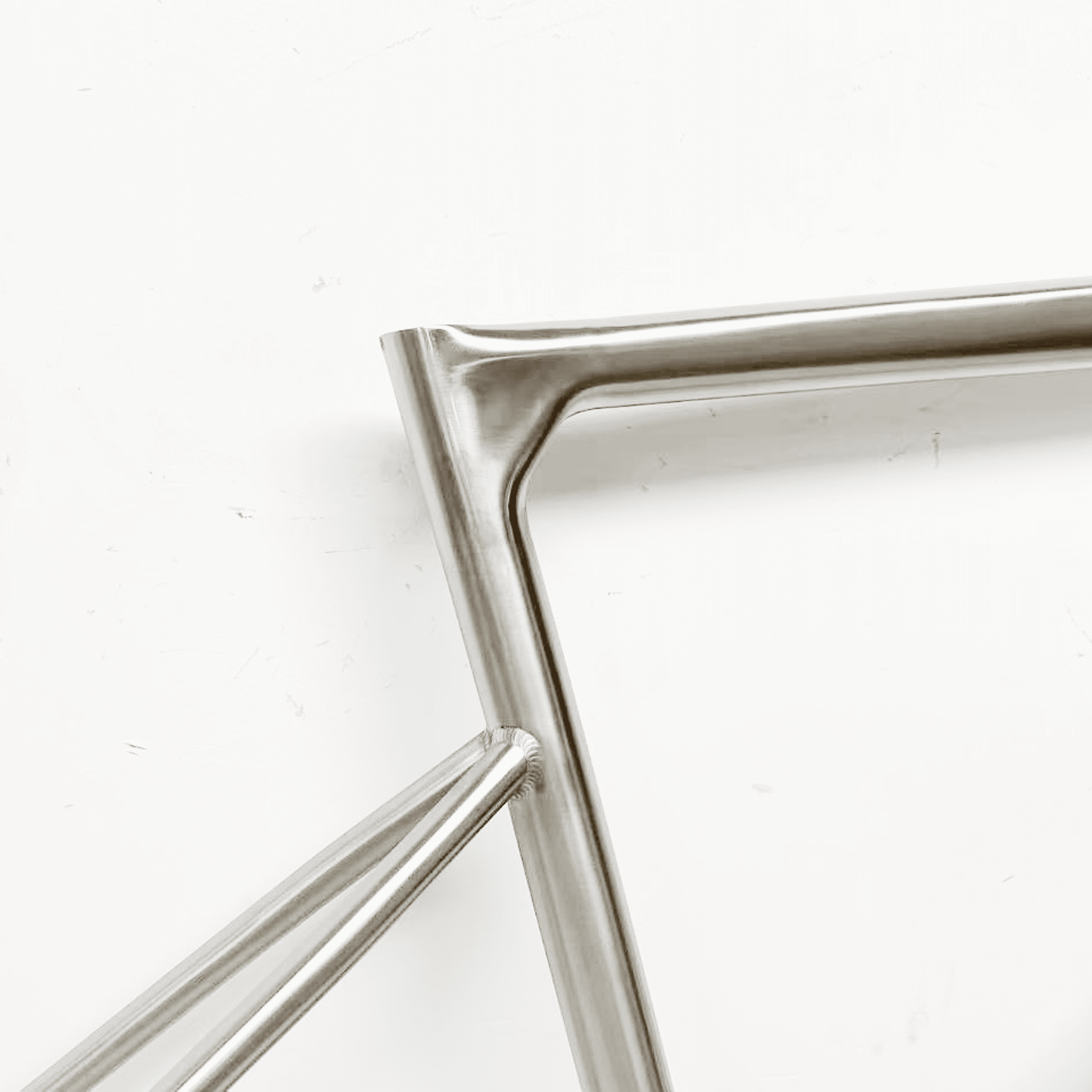

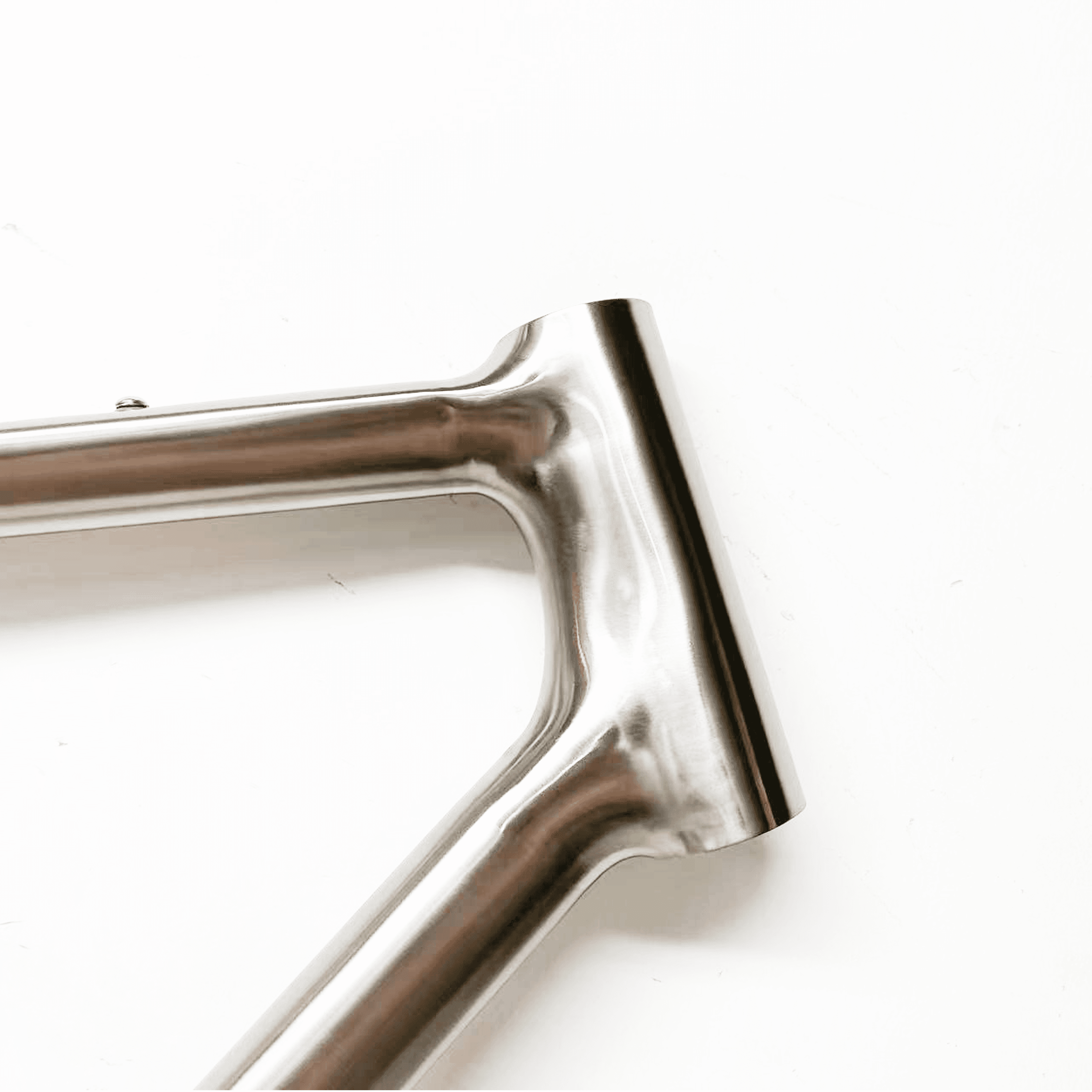

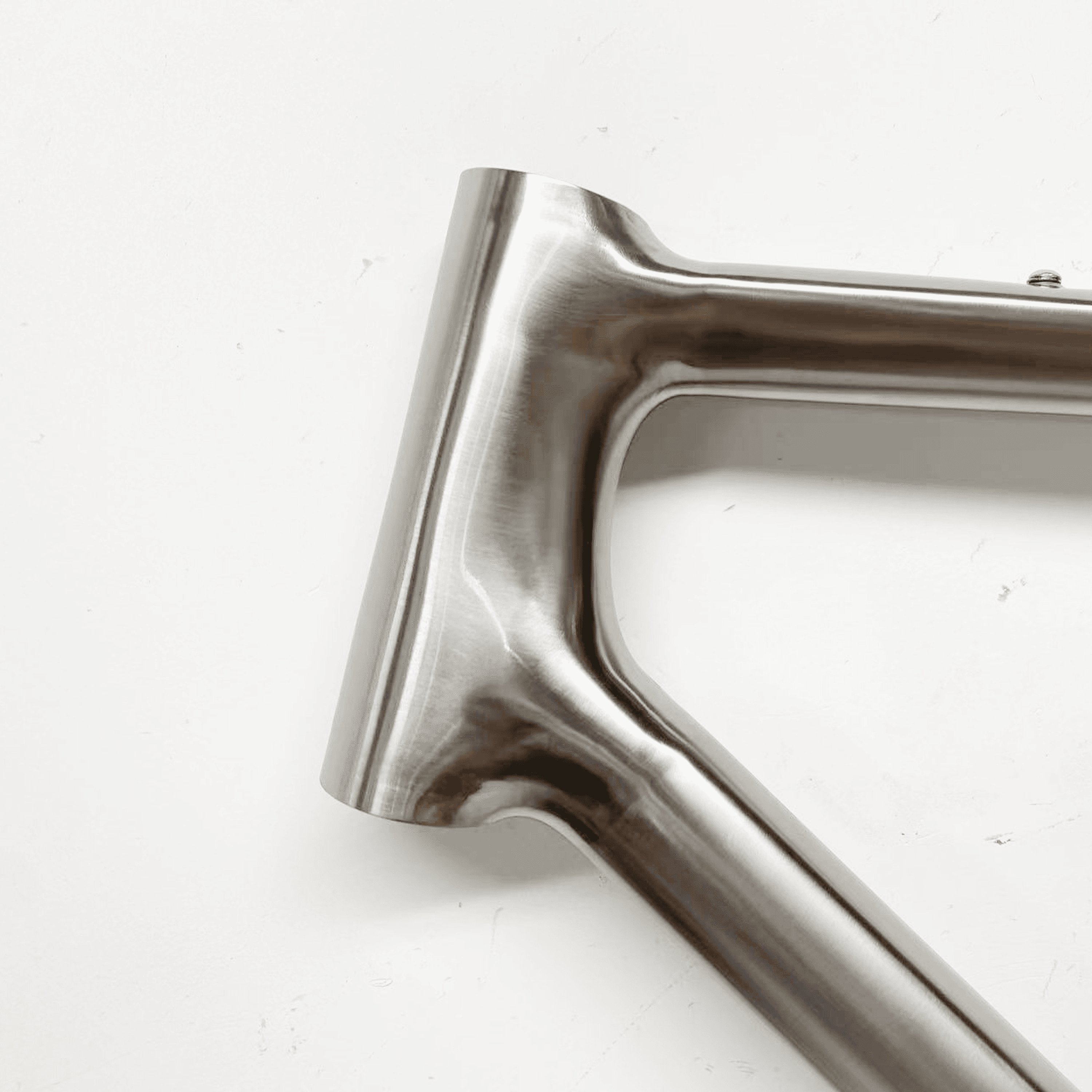

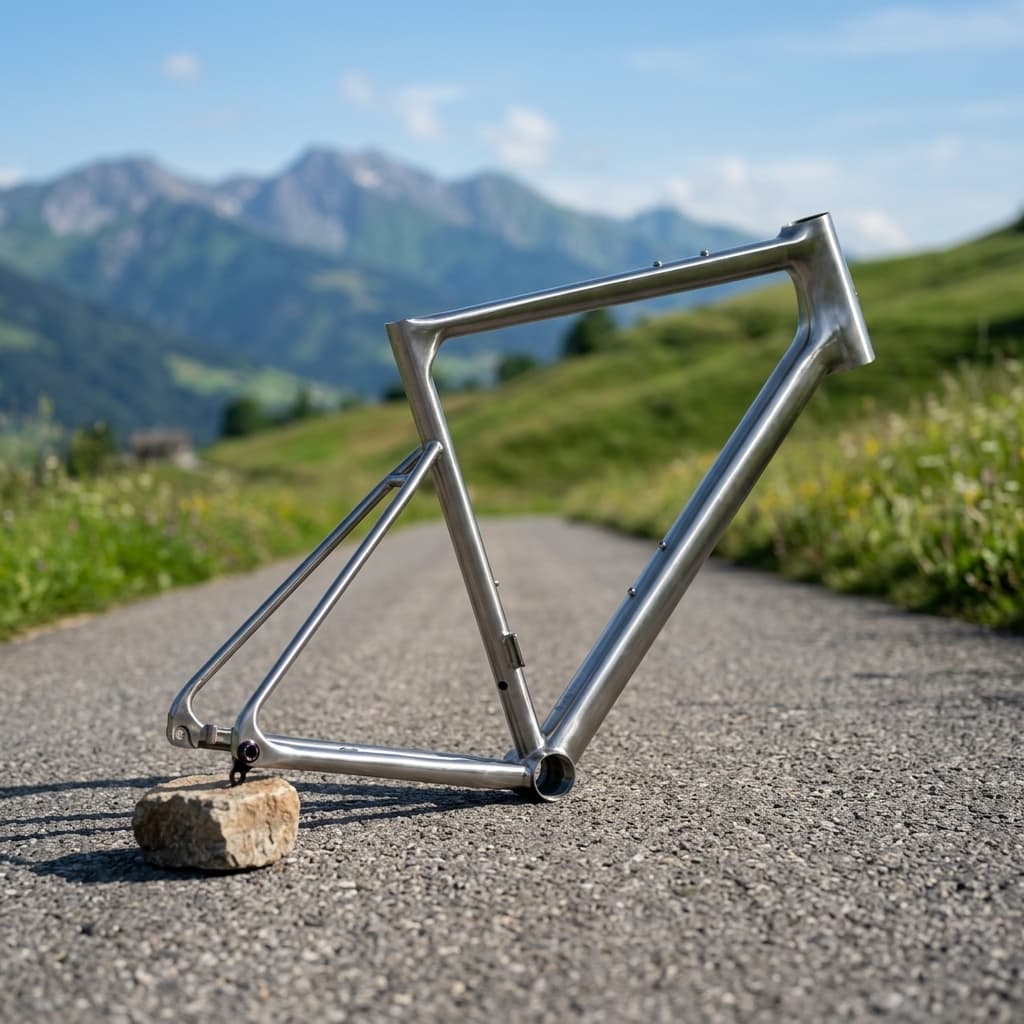

RoadSail Titanium Frame
Build your next road bike around the RoadSail titanium frame. Review its size-specific geometry, compare the carbon and titanium fork options, and choose the finish for your configuration.
700C Frameset | 35C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles

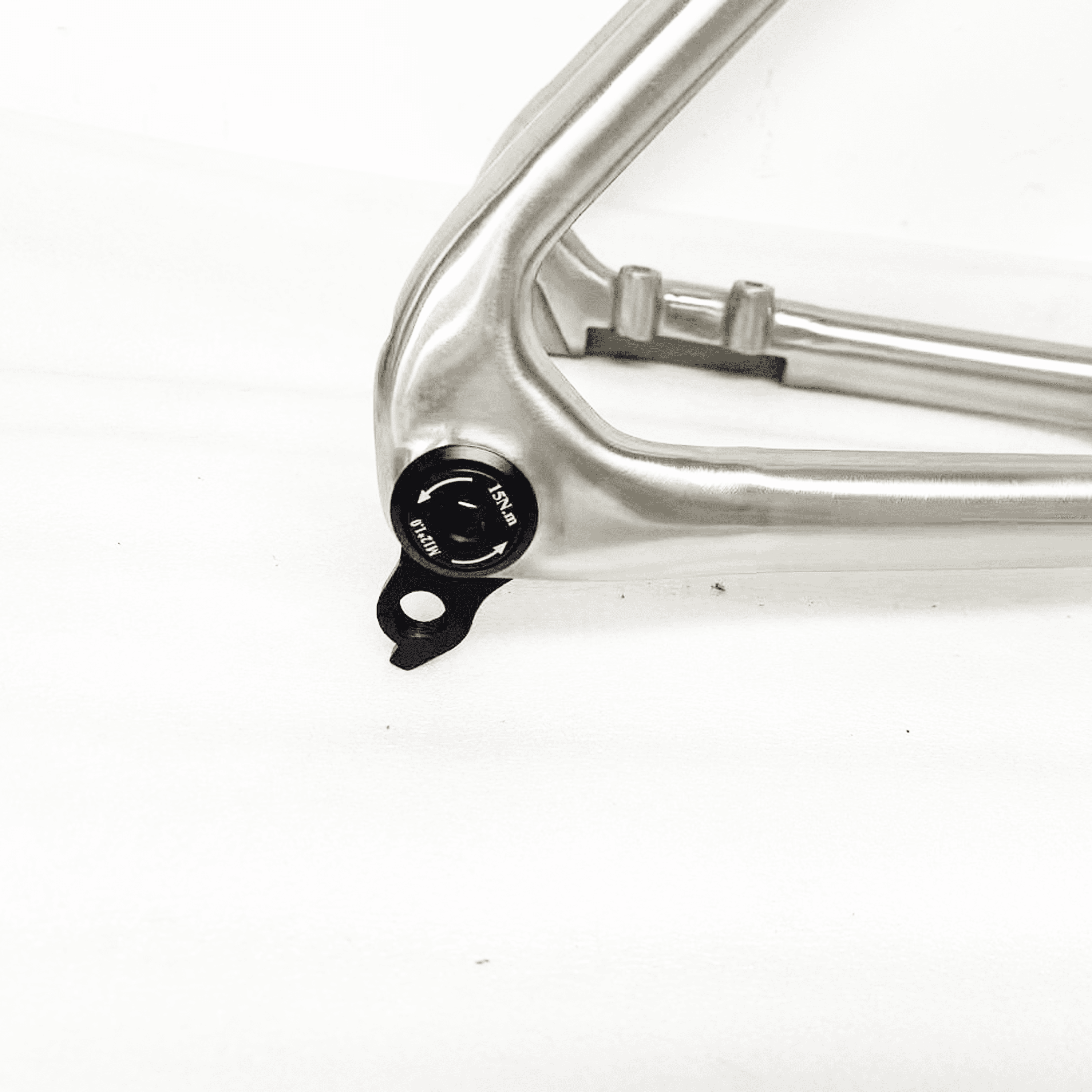

- X-12 Drop out with hanger
Technical
Frame
Modus 3Al-2.5V titanium frame
1-1/8" to 11/2"; 52/52
BSA-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 50/34 Shimano
Max 700C tire = up to 35c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Classic & Enduring | Titanium endurance frame built for all-day comfort.
Geometry
| Size | 45 | 48 | 50 | 52 | 54 |
|---|---|---|---|---|---|
| Body Height(cm) | <166 | 166-174 | 172-180 | 178-186 | 184-192 |
| TT Effective length(mm) | 505 | 525 | 545 | 565 | 585 |
| Seat tube Length(mm) | 450 | 480 | 500 | 520 | 540 |
| Seat tube angle(°) | 75 | 74.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Length(mm) | 120 | 140 | 160 | 180 | 200 |
| Head Tube Angle(°) | 71 | 72 | 73 | 73 | 73 |
| BB drop(mm) | 69 | 69 | 69 | 69 | 69 |
| Chainstay Length(mm) | 415 | 415 | 415 | 415 | 415 |
| Fork Length(mm) | 370 | 370 | 370 | 370 | 370 |
| Fork offset(mm) | 43 | 43 | 43 | 43 | 43 |
| Reach(mm) | 364.8 | 373.6 | 376.5 | 391 | 405.3 |
| Stack(mm) | 523.3 | 545.8 | 568.4 | 587.6 | 606.7 |
