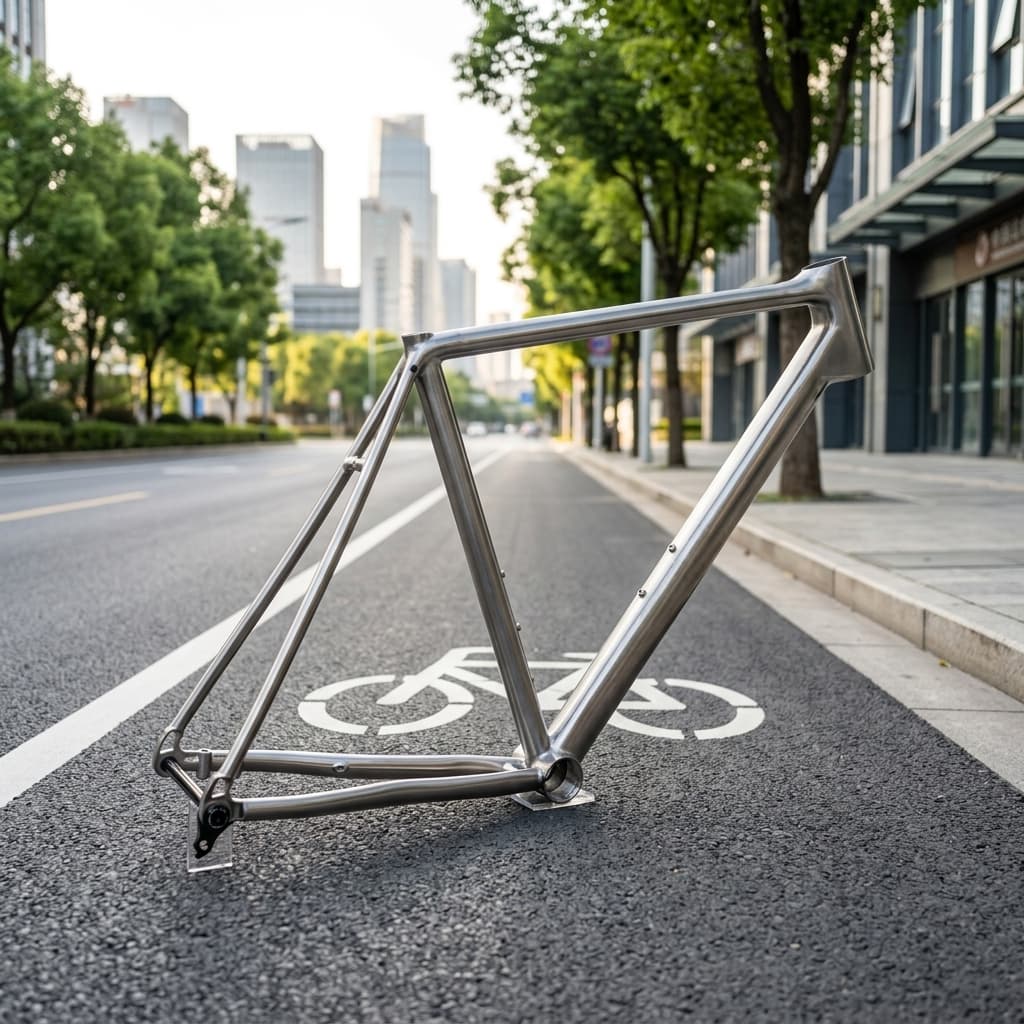

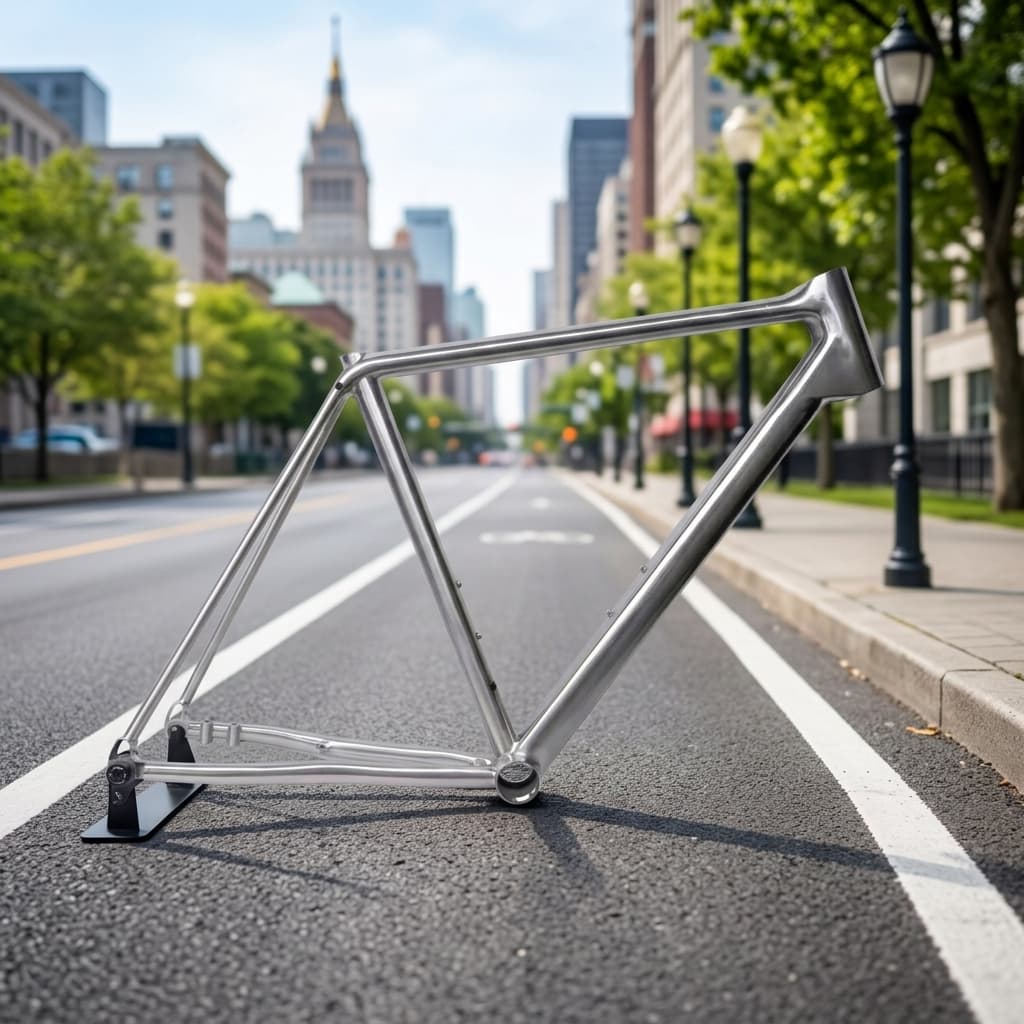

PIONEER Titanium Frame
The PIONEER titanium endurance frame uses a T47 bottom bracket shell. Compare its geometry and listed build options, then ask our team to review your planned components with your quote request.
700C Frameset | 35C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles
- X-12 Drop out with hanger
Technical
Frame
Modus 3Al-2.5V titanium frame

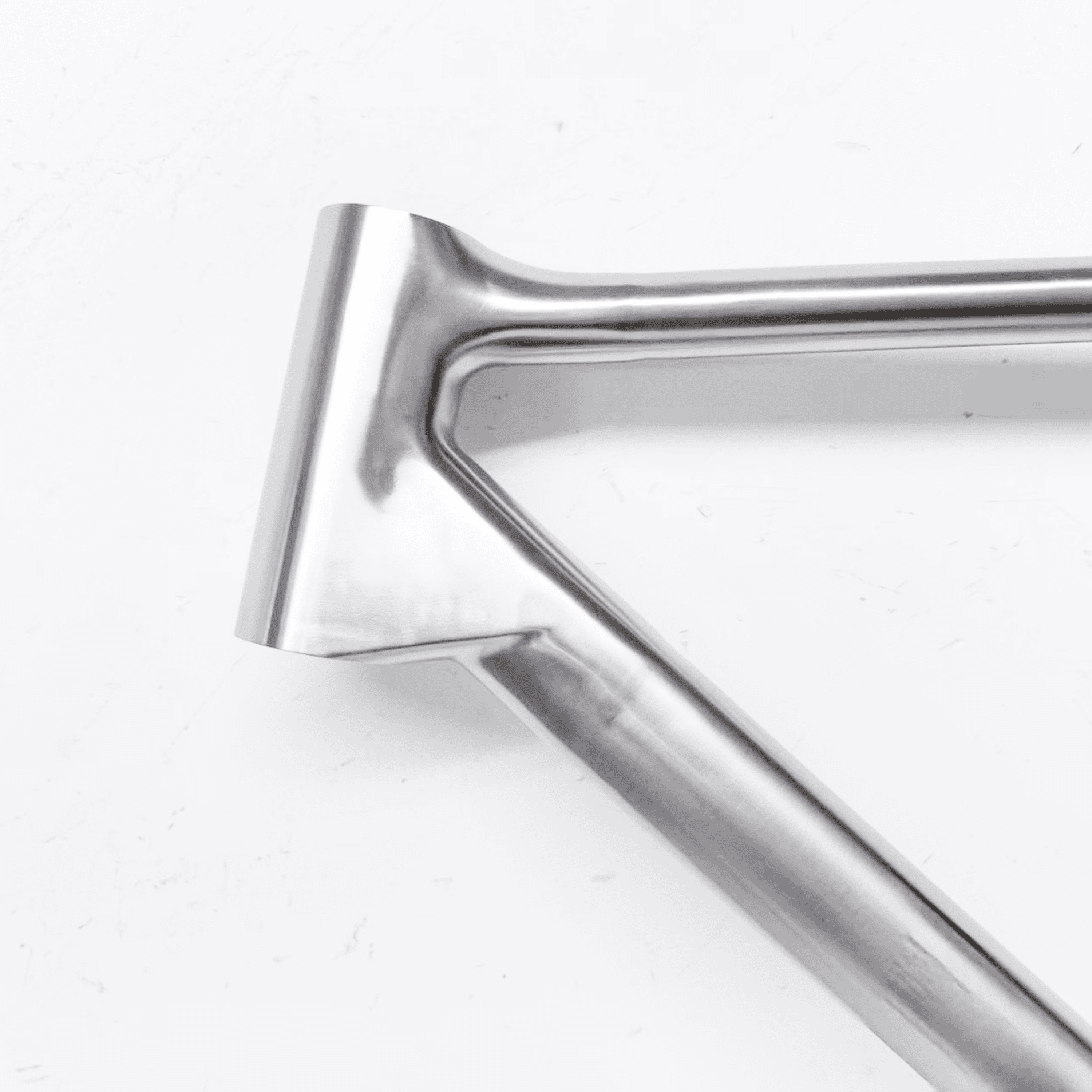

1-1/8" to 11/2"; 52/52

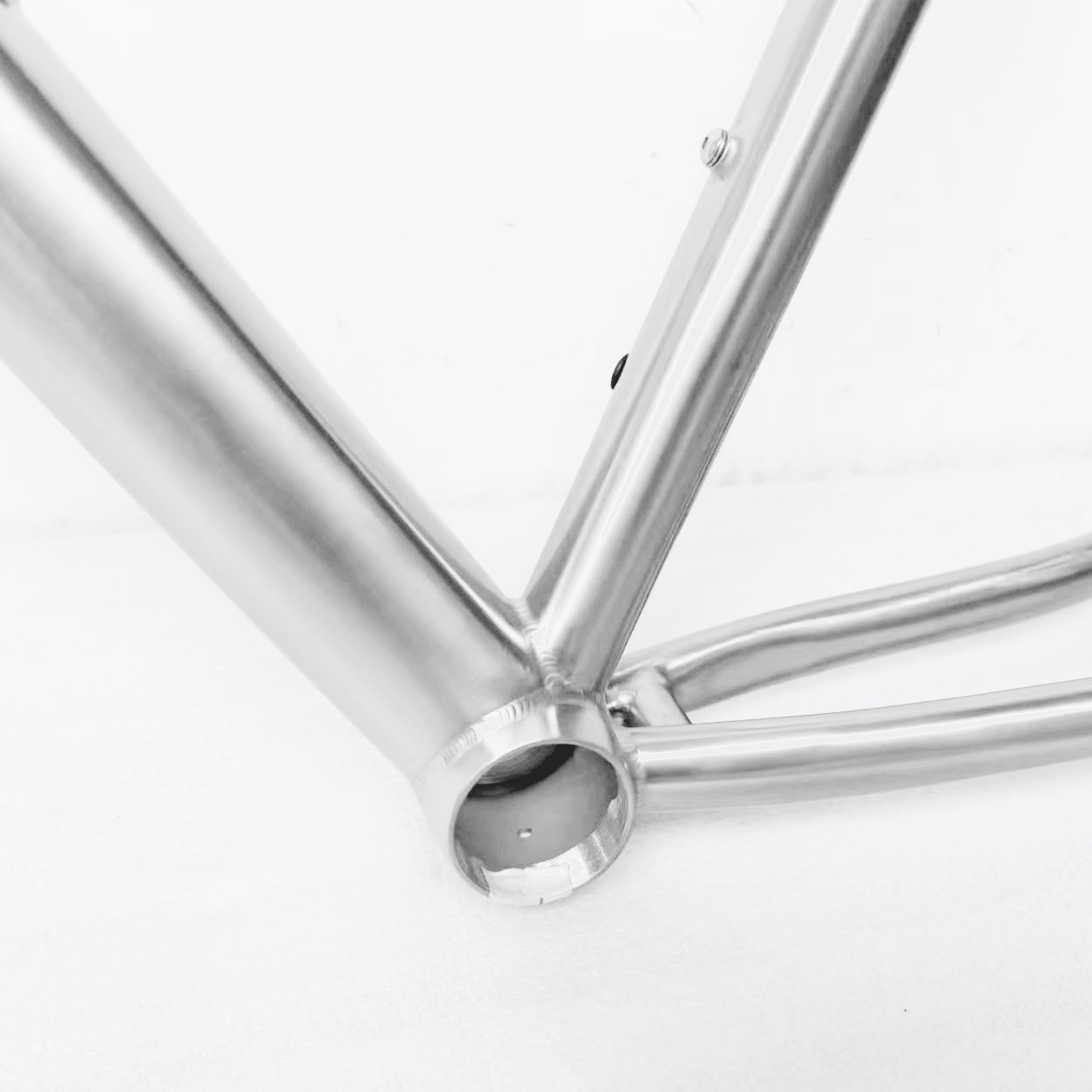

T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 50/34 Shimano
Max 700C tire = up to 35c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Classic & Enduring | Titanium endurance frame built for all-day comfort.
Geometry
| Size | 2XS | XS | S | M | L | XL | 2XL | 3XL |
|---|---|---|---|---|---|---|---|---|
| Body Height(cm) | <165 | 165-170 | 170-175 | 175-180 | 180-185 | 185-190 | 190-195 | 195-200 |
| TT Effective length(mm) | 515 | 525 | 535 | 550 | 565 | 580 | 595 | 610 |
| Seat tube Length(mm) | 430 | 450 | 470 | 490 | 510 | 530 | 550 | 570 |
| Seat tube angle(°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Length(mm) | 130 | 135 | 145 | 155 | 165 | 180 | 195 | 210 |
| Head Tube Angle(°) | 70 | 71 | 72 | 72 | 72 | 72 | 72 | 72 |
| BB drop(mm) | 75 | 75 | 73 | 73 | 73 | 71 | 71 | 71 |
| Chainstay Length(mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Fork Length(mm) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Fork offset(mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Reach(mm) | 358 | 365 | 374 | 383 | 395 | 406 | 417 | 427 |
| Stack(mm) | 532 | 540 | 553 | 562 | 575 | 588 | 602 | 617 |
