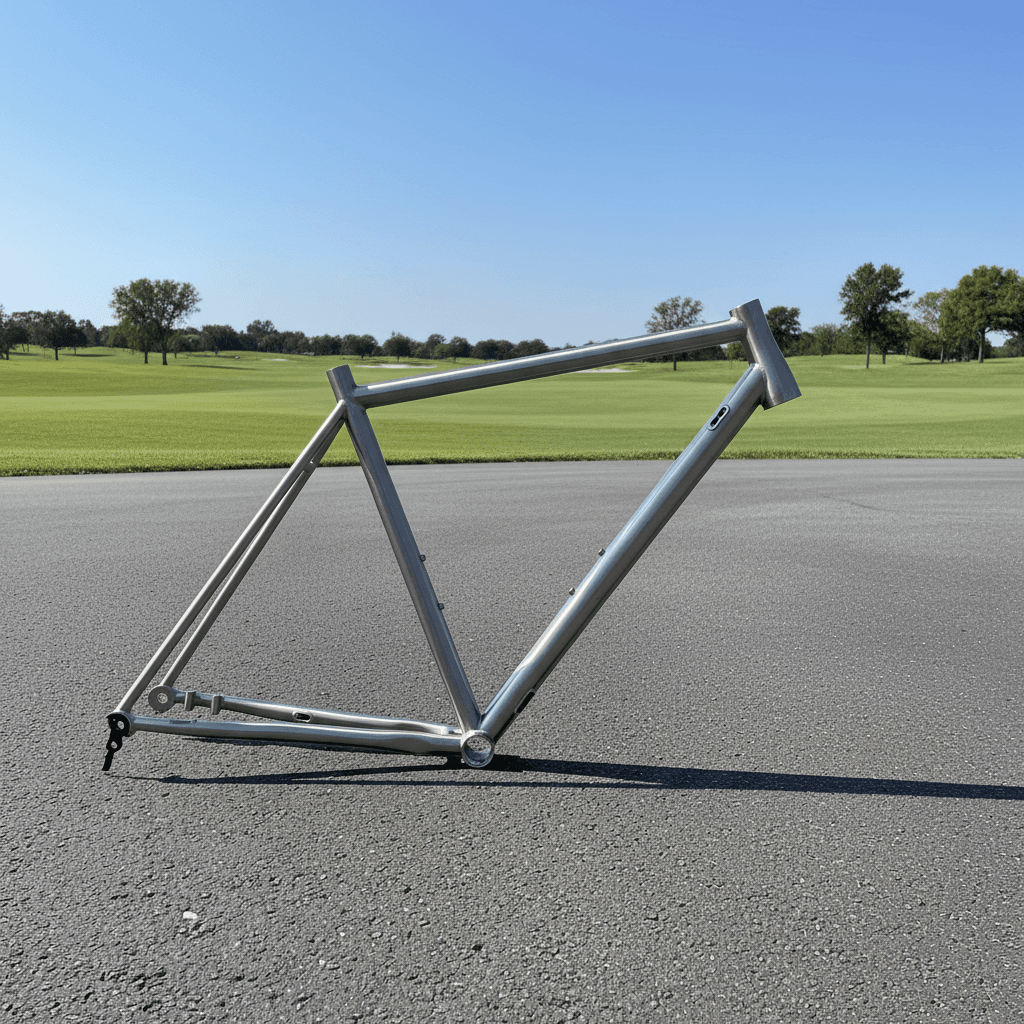

Endurance Titanium Frame
The Endurance titanium frame is part of our all-road collection for riders planning longer road rides. Review its geometry, choose your fork and seatpost, and send us your preferred configuration.
700C Frameset | 32C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles

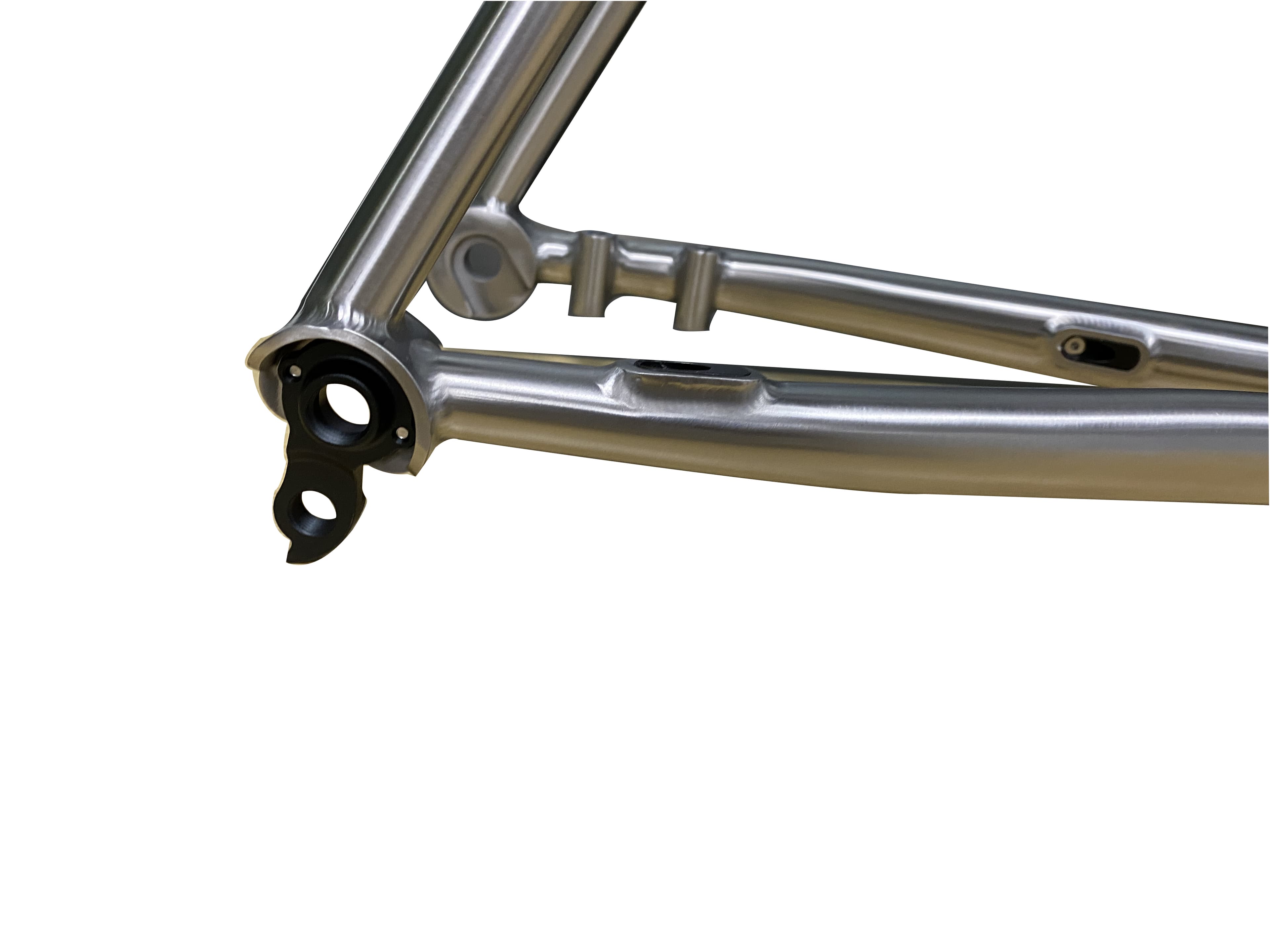

- X-12 Drop out with hanger
Technical
Frame

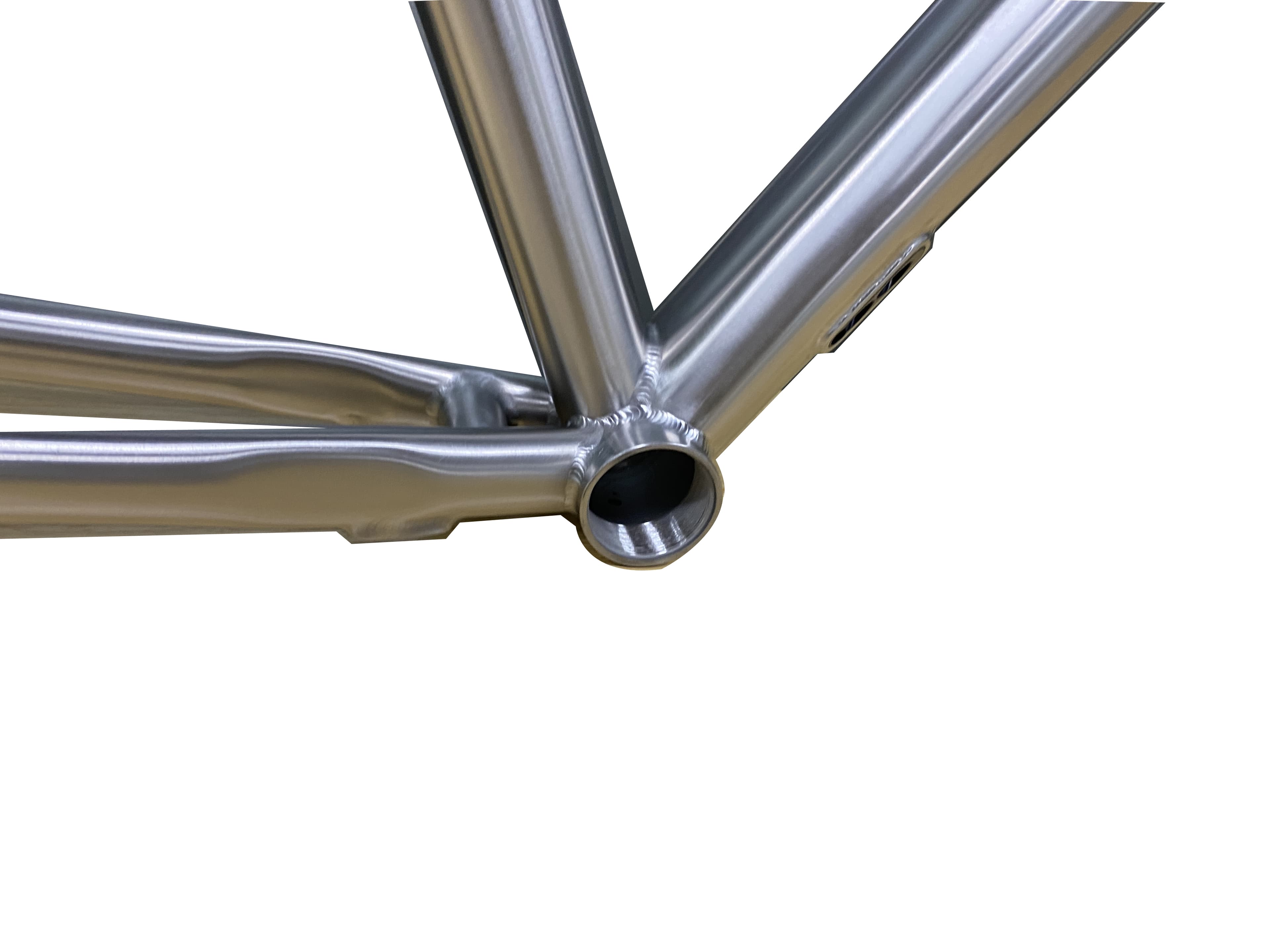

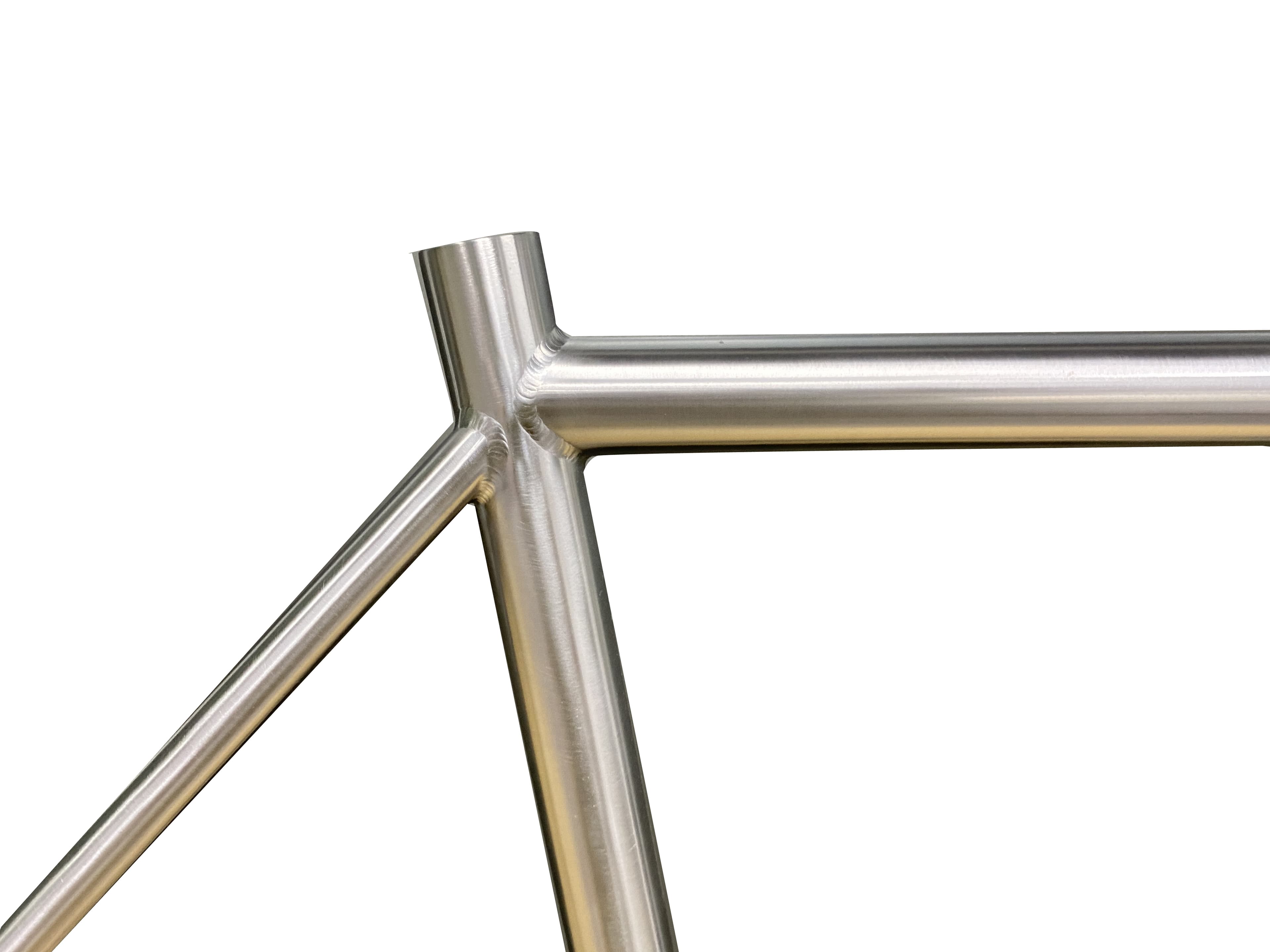

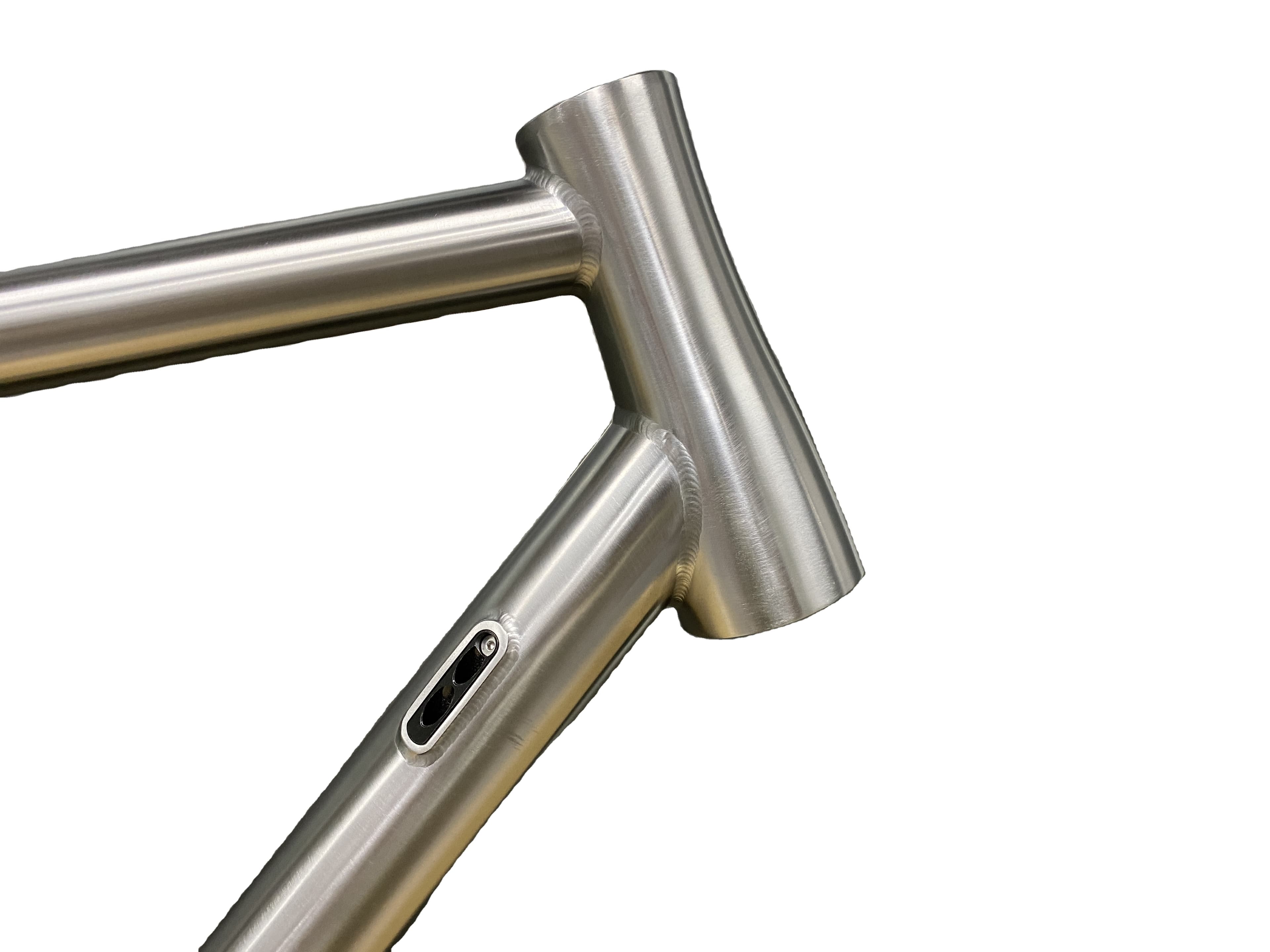

Modus 3Al-2.5V titanium frame
1-1/8" to 11/2"; 42/52
BSA-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 50/34 Shimano
Max 700C tire = up to 35c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Classic & Enduring | Titanium endurance frame built for all-day comfort.
Geometry
| Size | 47 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Body Height(cm) | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 | |
| TT Effective length(mm) | 517 | 535 | 550 | 560 | 575 | 590 | |
| Seat tube Length(mm) | 423 | 468 | 513 | 534 | 554 | 584 | |
| Seat tube angle(°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | |
| Head Tube Length(mm) | 110 | 130 | 150 | 170 | 190 | 210 | |
| Head Tube Angle(°) | 70.5 | 72 | 72.5 | 72.5 | 72.5 | 72.5 | |
| BB drop(mm) | 69 | 69 | 69 | 69 | 69 | 69 | |
| Chainstay Length(mm) | 415 | 415 | 415 | 415 | 415 | 415 | |
| Fork Length(mm) | 370 | 370 | 370 | 370 | 370 | 370 | |
| Fork offset(mm) | 43 | 43 | 43 | 43 | 43 | 43 | |
| Fork rake fr(mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Reach(mm) | 367 | 377 | 386 | 392 | 401 | 409 | |
| Stack(mm) | 506 | 530 | 550 | 565 | 584 | 608 |
