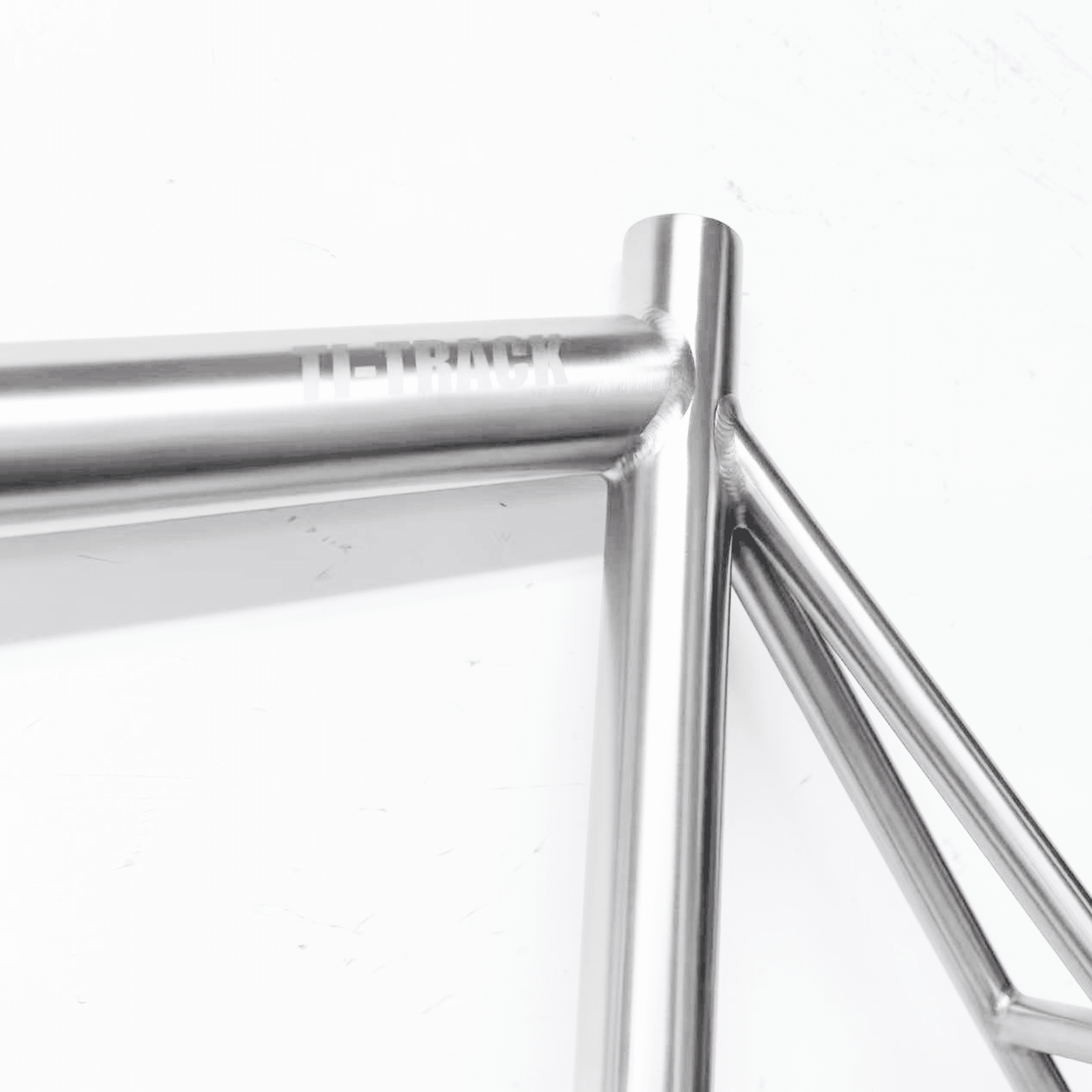

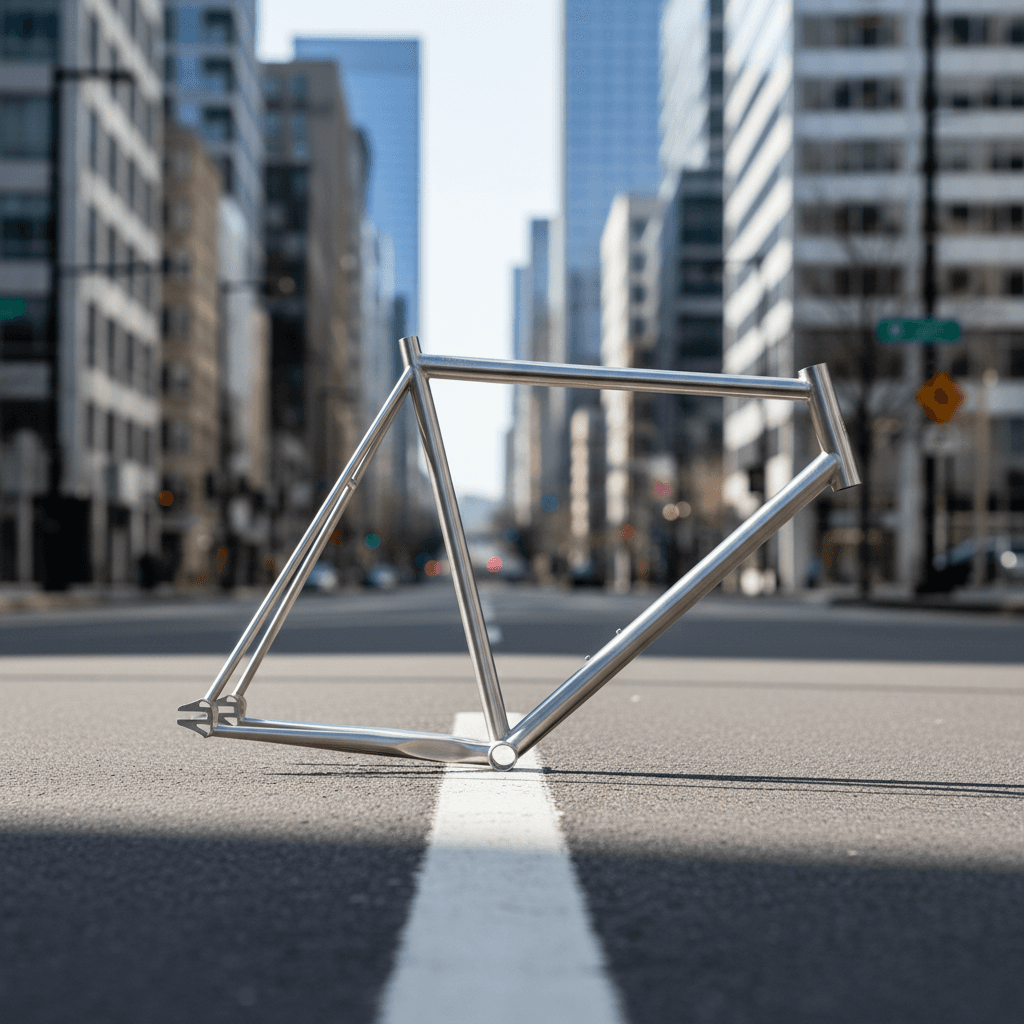

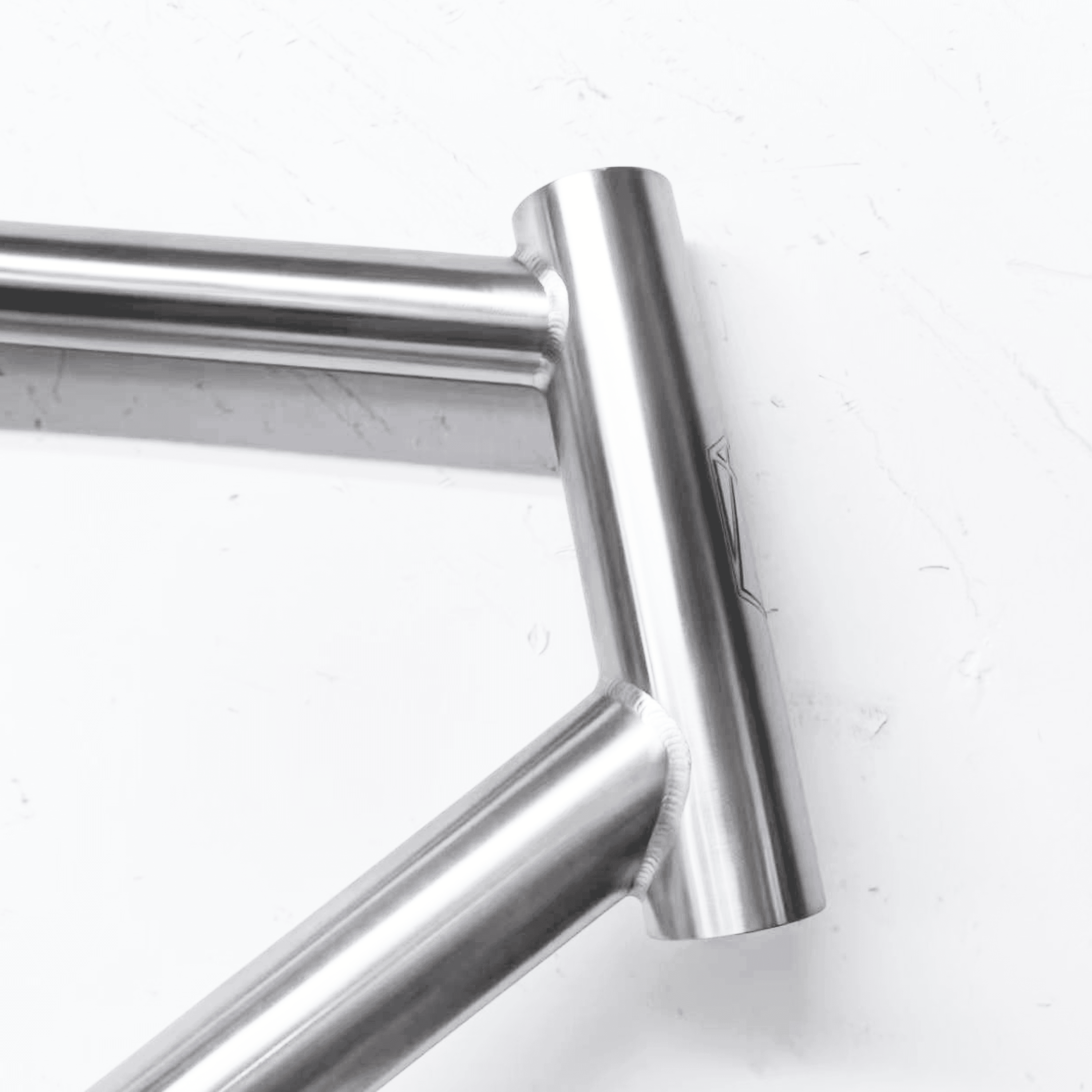

City Fixed Urban Titanium Frame
Plan your urban bike build with the City Fixed Urban titanium frame. Explore the listed sizes and finish options, then discuss your drivetrain and component choices with our team before ordering.
700C Frameset | 28C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar

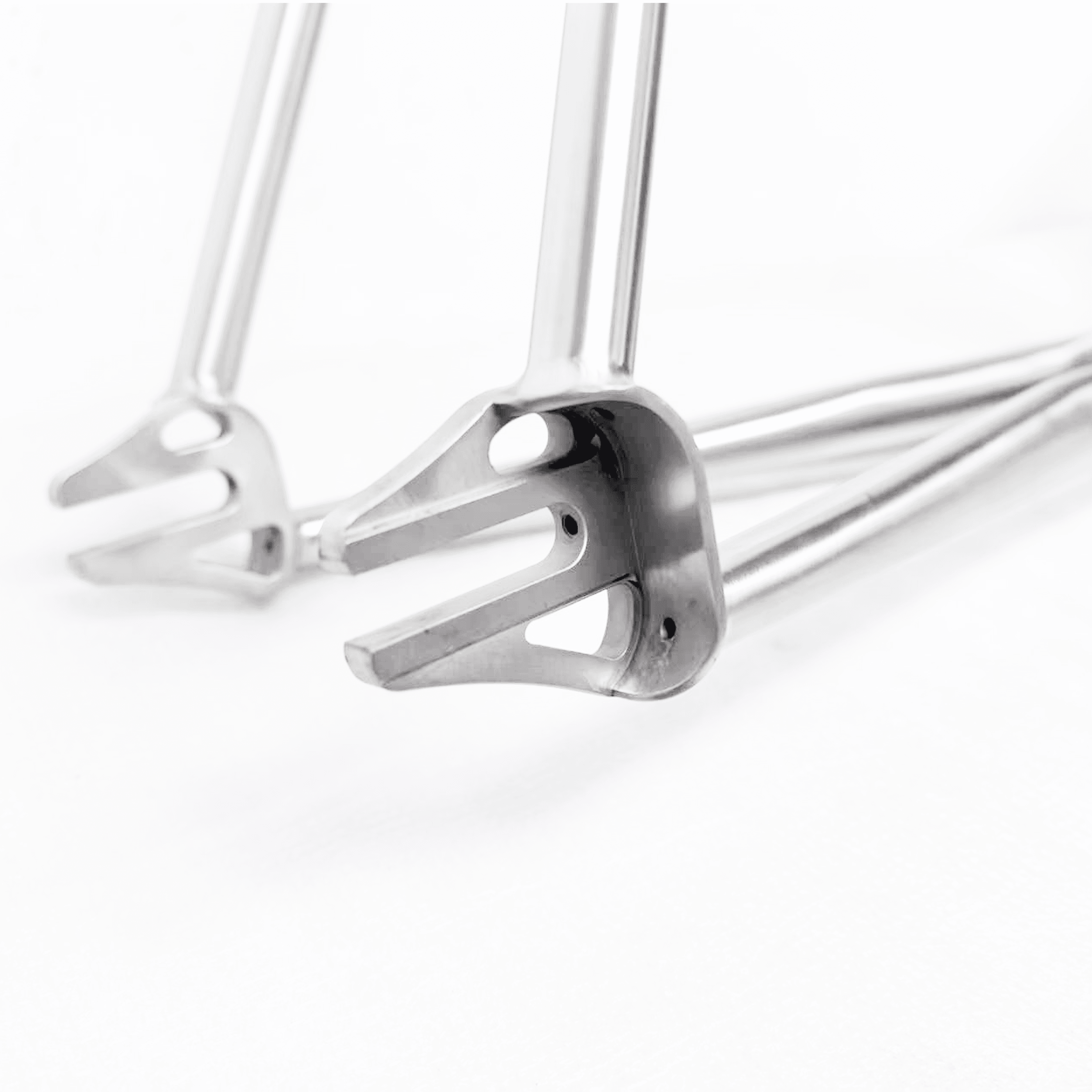

- QR Drop out for 120mm spacing
Technical
Frame
Modus 3Al-2.5V titanium frame
BSA-68
31.8 mm front derailleur hanger size
Max chainring
- 56T Shimano
Max 700C tire = up to 28c
1550 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Rigid by design, versatile by nature.
- 02Race-ready performance meets endurance-ready reliability, crafted to excel in every kind of ride.
Geometry
| Size | 48 | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|---|
| Seat tube st(mm) | 480 | 500 | 520 | 540 | 560 | 580 | 600 |
| Top tube tt'(mm) | 525 | 535 | 545 | 555 | 565 | 575 | 585 |
| Head tube ht(mm) | 95 | 100 | 105 | 110 | 115 | 120 | 125 |
| Head angle ha(°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat angle sa(°) | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
| Rear center rc(mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase wb(mm) | 970 | 978 | 986 | 994 | 1002 | 1010 | 1018 |
| Bb drop(mm) | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Fork length fl(mm) | 368 | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork rake fr(mm) | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Stack(mm) | 580 | 588 | 596 | 604 | 612 | 620 | 628 |
| Reach(mm) | 370 | 378 | 386 | 394 | 402 | 410 | 418 |
