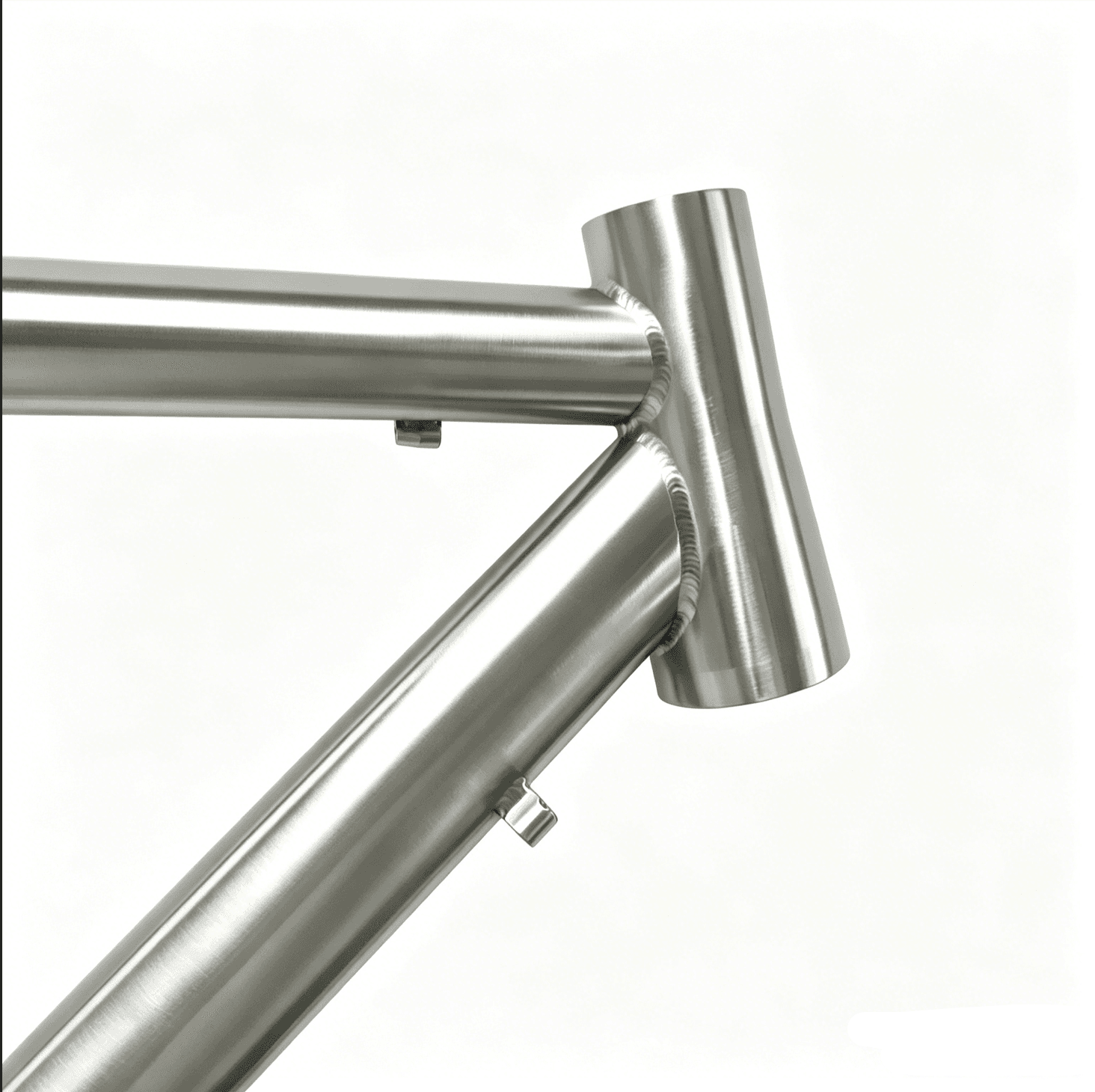

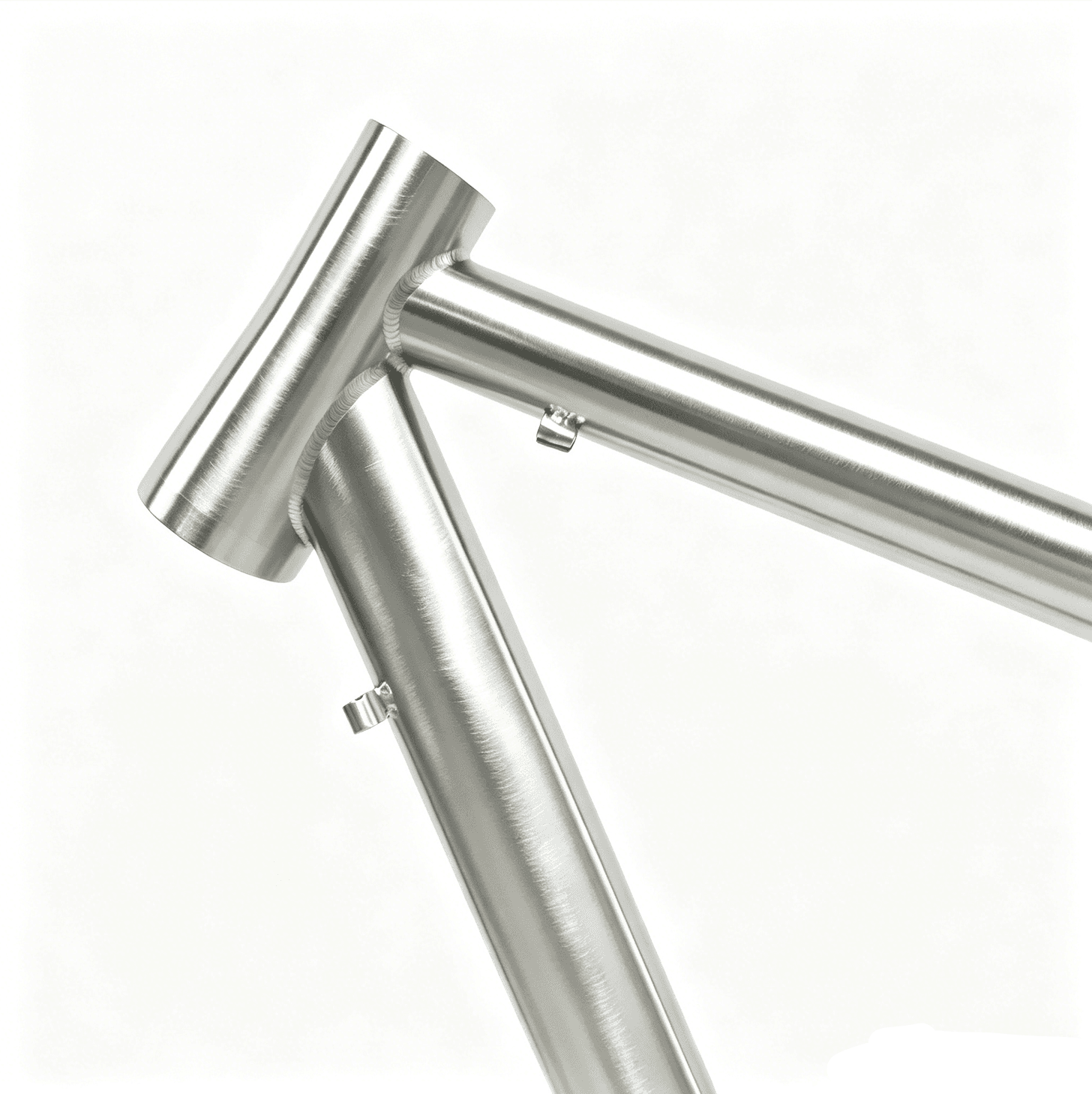

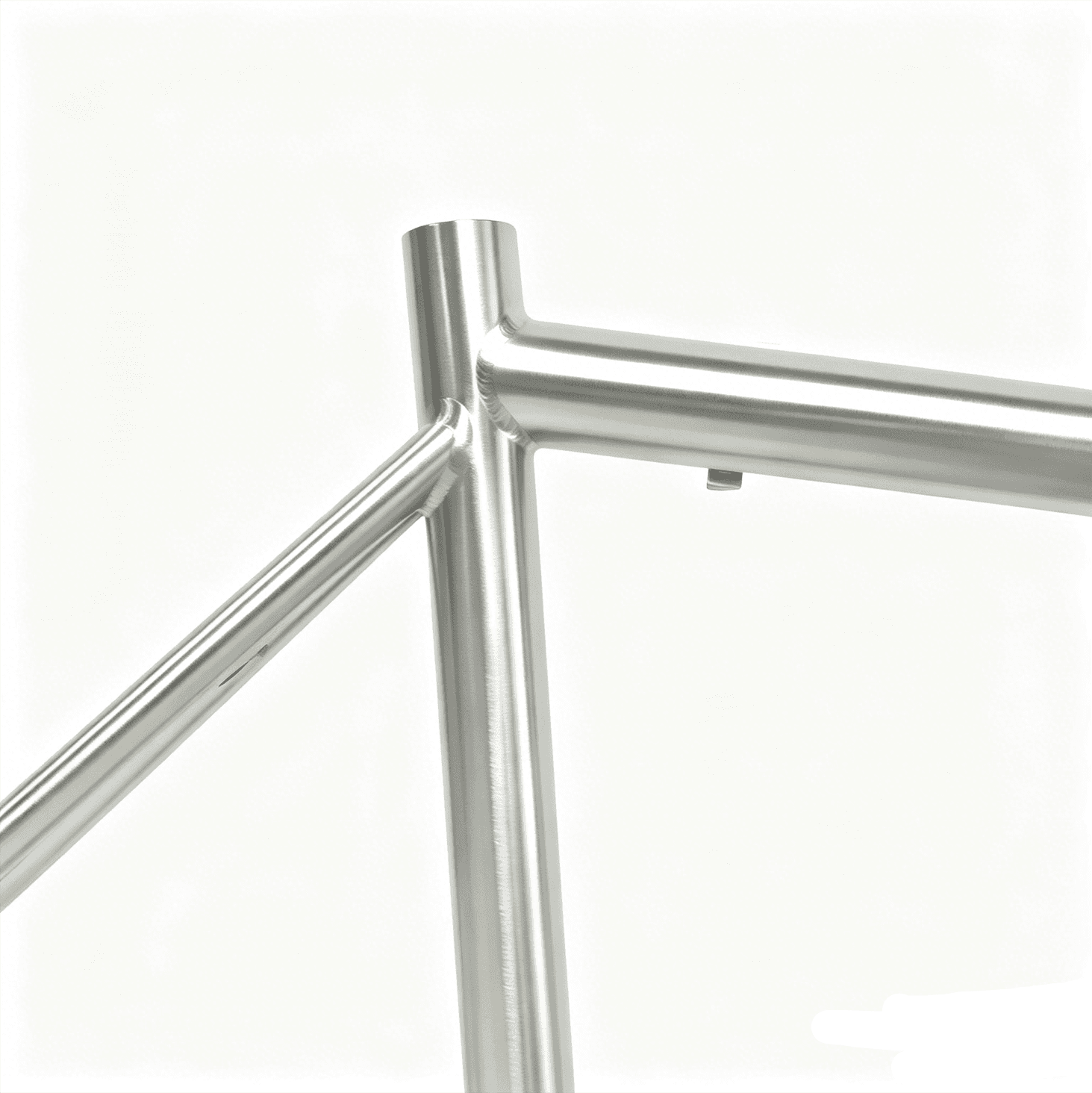

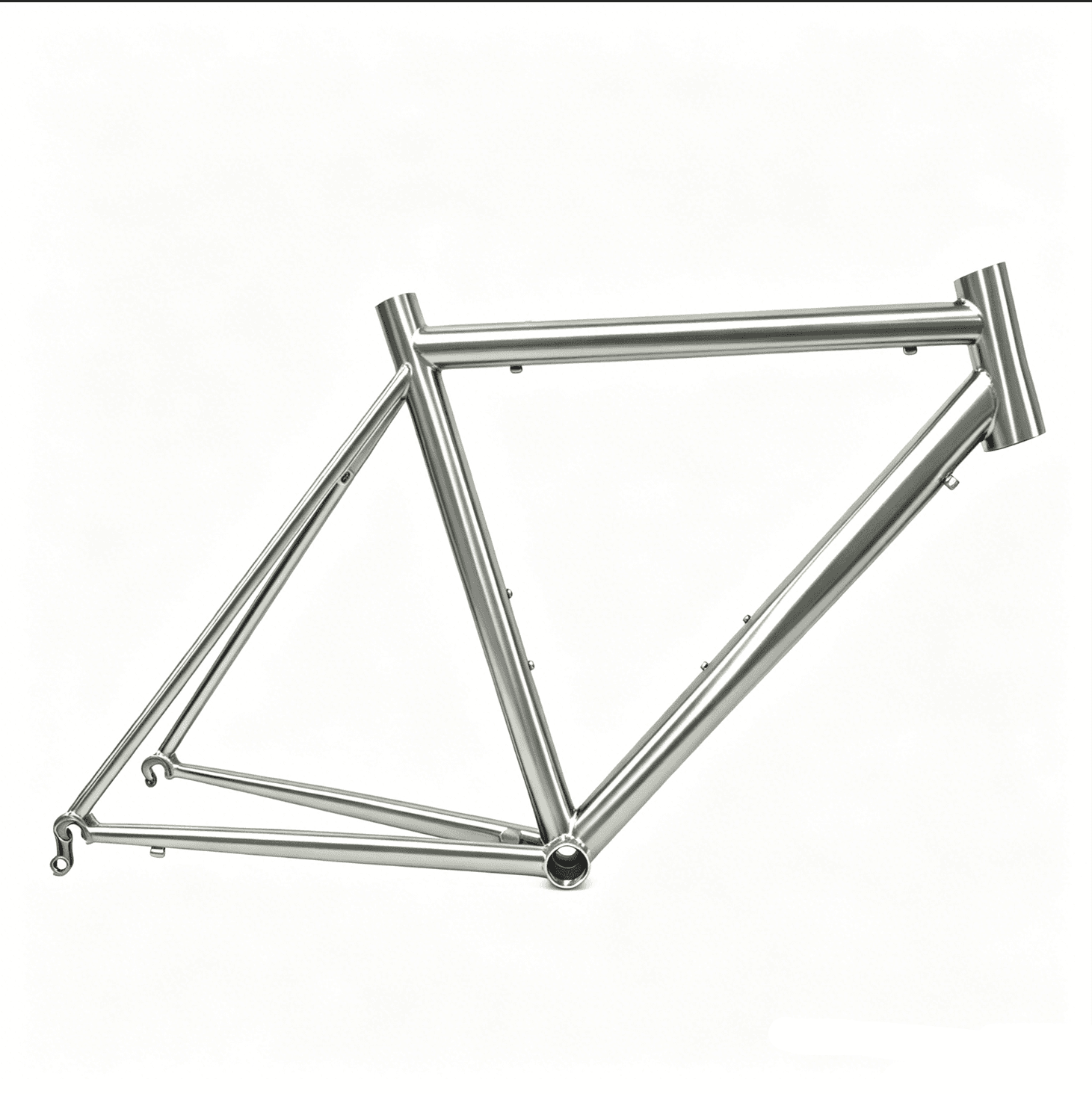

Advanced Titanium Frame
The Advanced titanium frame offers a starting point for a road build with a choice of carbon or titanium fork. Compare the geometry and select your size, seatpost and finish to request a quote.
700C Frameset | 28C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles
- 10 QR Drop out with replacement hanger
Technical
Frame
Modus 3Al-2.5V titanium frame
BSA-68
Electronic and mechanical compatible
34.9 mm front derailleur hanger size
Max chainring
- 53/39 Shimano
Max 700C tire = up to 28c
1600 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Rigid by design, versatile by nature.
- 02Race-ready performance meets endurance-ready reliability, crafted to excel in every kind of ride.
Geometry
| Size | XXS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Seat tube st(mm) | 460 | 480 | 500 | 520 | 540 | 560 | 580 |
| Top tube tt'(mm) | 510 | 525 | 540 | 555 | 565 | 575 | 595 |
| Head tube ht(mm) | 100 | 110 | 130 | 150 | 170 | 190 | 210 |
| Head angle ha(°) | 71.5 | 72 | 72.5 | 73 | 73 | 73 | 73 |
| Seat angle sa(°) | 75 | 74 | 73.5 | 73.25 | 73.25 | 73.25 | 72.5 |
| Rear center rc(mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Front center fc(mm) | 572 | 574 | 580 | 588 | 598 | 608 | 619 |
| Wheelbase wb(mm) | 972 | 974 | 980 | 988 | 998 | 1008 | 1020 |
| Bb drop(mm) | 68 | 68 | 68 | 68 | 68 | 68 | 68 |
| Fork length fl(mm) | 372 | 372 | 372 | 372 | 372 | 372 | 372 |
| Fork rake fr(mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Stack(mm) | 499 | 510 | 531 | 551 | 571 | 590 | 609 |
| Reach(mm) | 376 | 379 | 383 | 389 | 393 | 398 | 403 |
