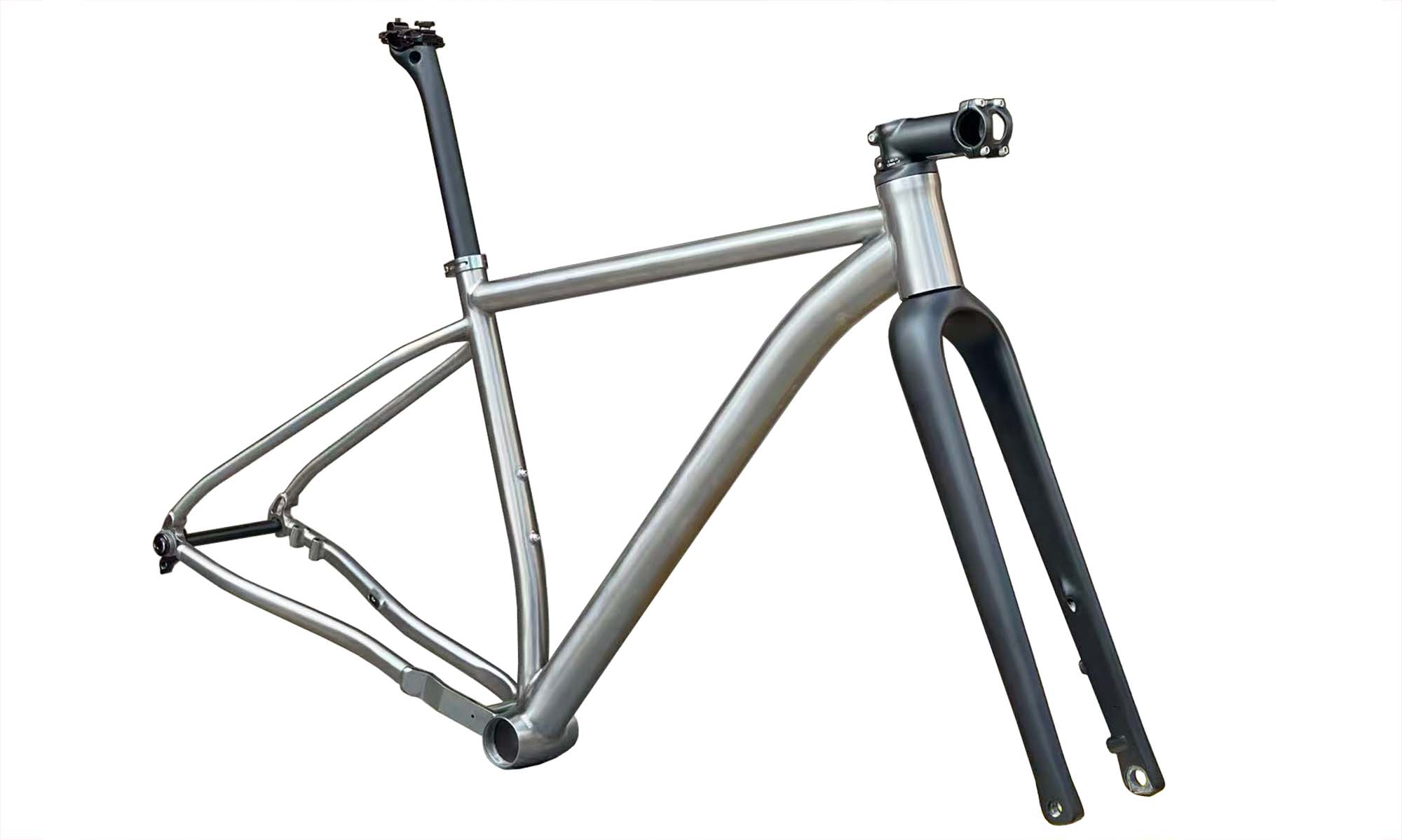

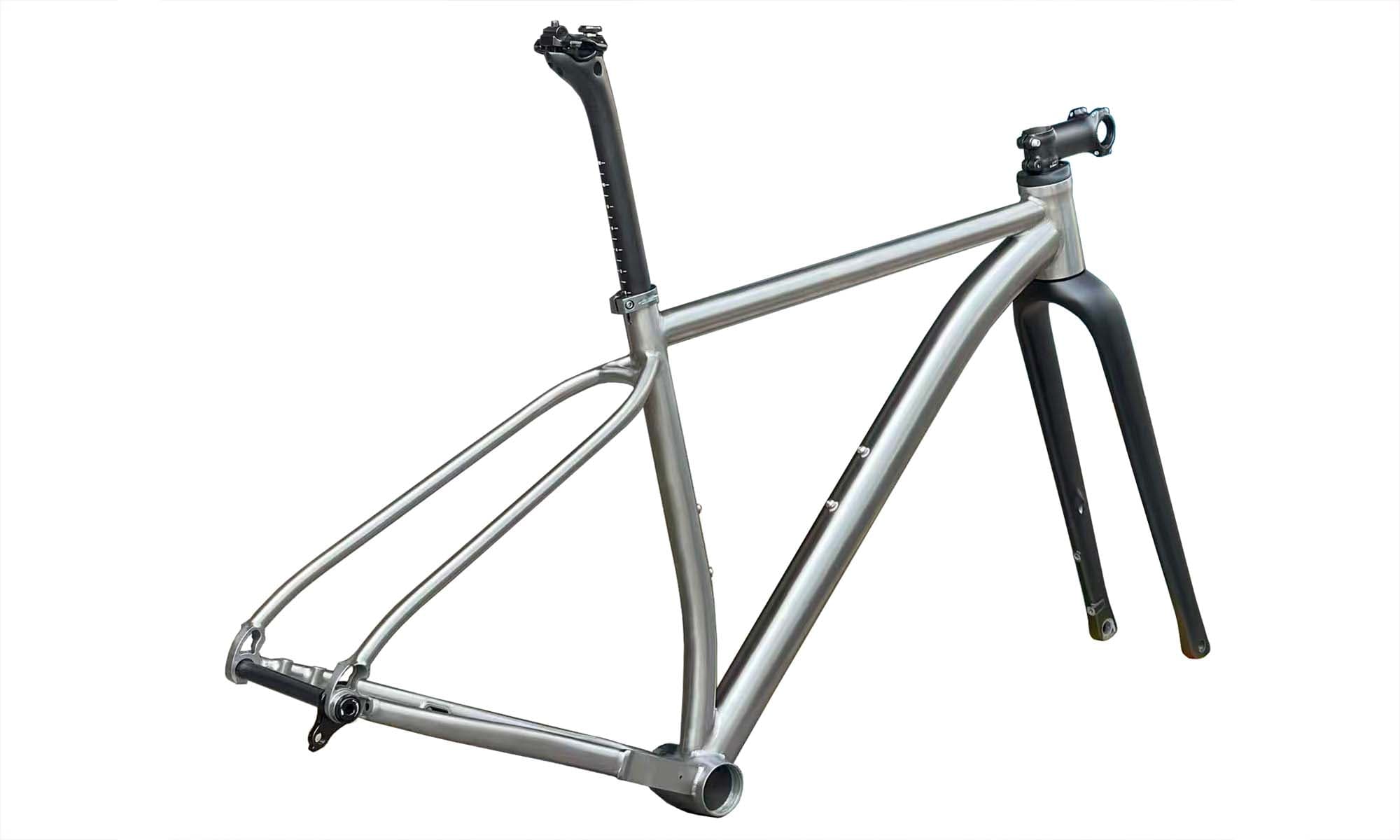

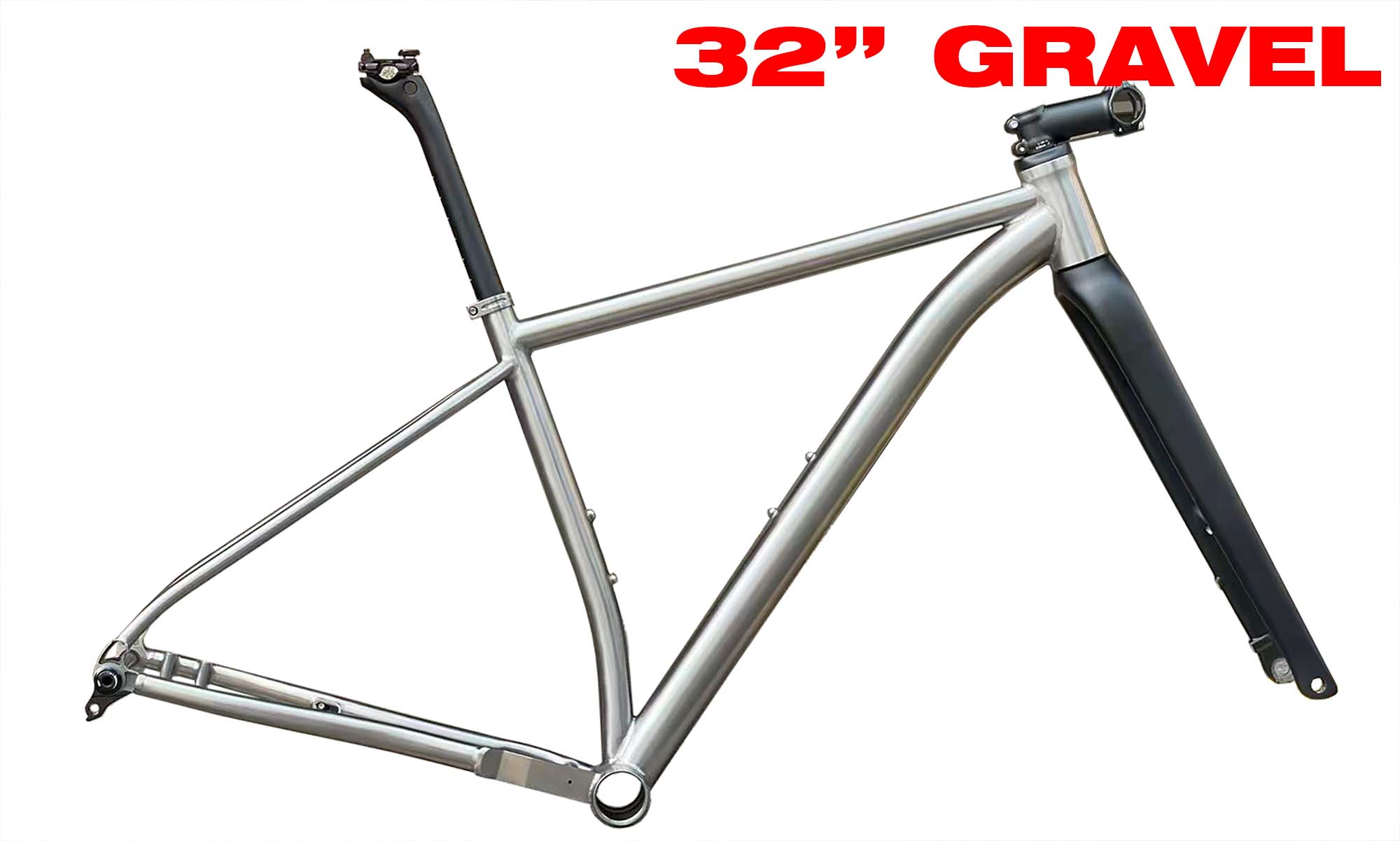

TI-32"Gravel Titanium Frame

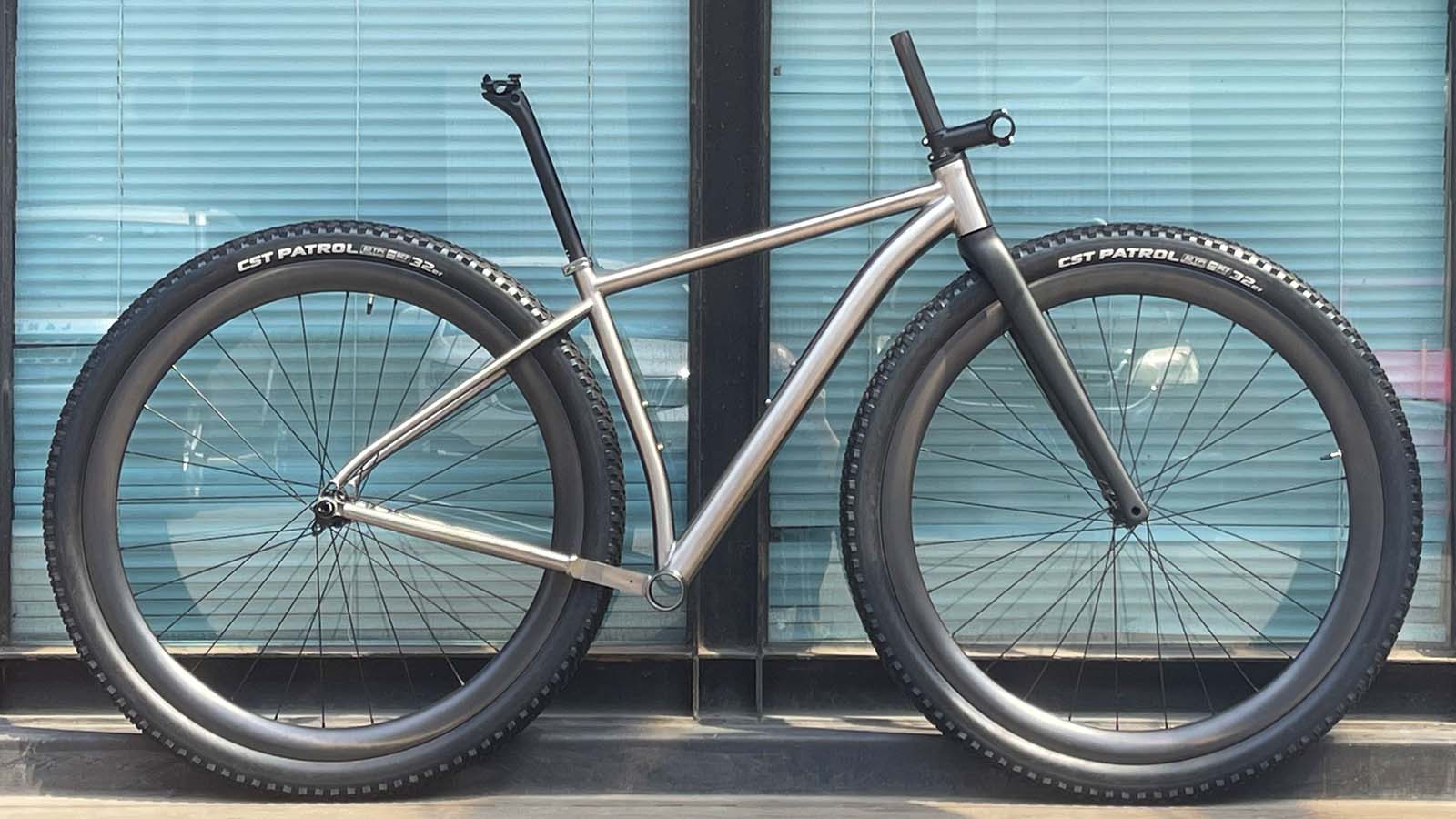

Built around 32-inch wheels and 2.4-inch off-road tires, this titanium gravel frameset pairs stable endurance geometry with an efficient, reliable rigid carbon fork.
32" Gravel Rigid Frameset | 2.4" Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- BlackHeart 3Al-2.5V double-butted titanium frame
- In-Route carbon fork
- Modus Carbon SL seatpost
- Modus Titanium seatpost collar
- FSA SRS headset
- Aluminum thru axles
- UDH rear derailleur hanger
Technical
Frame
Modus 3Al-2.5V titanium frame
T47-86.5 bottom bracket
Electronic only
31.8mm front derailleur hanger size
Max chainring
- 40T Shimano Single
Max 32" tire = up to 2.4"
1800 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01After three years of development and multiple tested iterations, our 32" frame system, including a carbon fork, seatpost, and wheelset, is finally ready. We invite riders to help refine this new category, and offer full customization for those ready to explore beyond standard geometry.
- 0232-inch rollover & 2.4" off-road tire
- 03Rigid fork: efficient & reliable
- 04Stable endurance geometry
- 05148 disc brake system
- 06Mud clearance & touring ready
Geometry
| Size | S | M | L | XL | 2XL |
|---|---|---|---|---|---|
| Seat tube ST(mm) | 470 | 490 | 510 | 530 | 550 |
| Top tube TT(mm) | 585 | 605 | 625 | 645 | 665 |
| Head tube HT(mm) | 95 | 105 | 115 | 125 | 145 |
| Head angle HA(°) | 72 | 72 | 72 | 72 | 72 |
| Seat angle SA(°) | 75 | 75 | 75 | 75 | 75 |
| Rear center RC(mm) | 475 | 475 | 475 | 475 | 475 |
| Front center FC(mm) | 652 | 672 | 692 | 711 | 731 |
| Fork length FL(mm) | 444 | 444 | 444 | 444 | 444 |
| Fork rake FR(mm) | 60 | 60 | 60 | 60 | 60 |
| Wheelbase WB(mm) | 1105 | 1125 | 1145 | 1165 | 1184 |
| BB drop(mm) | 110 | 110 | 110 | 110 | 110 |
| Stack(mm) | 601 | 611 | 621 | 630 | 650 |
| Reach(mm) | 420 | 437 | 454 | 470 | 485 |
