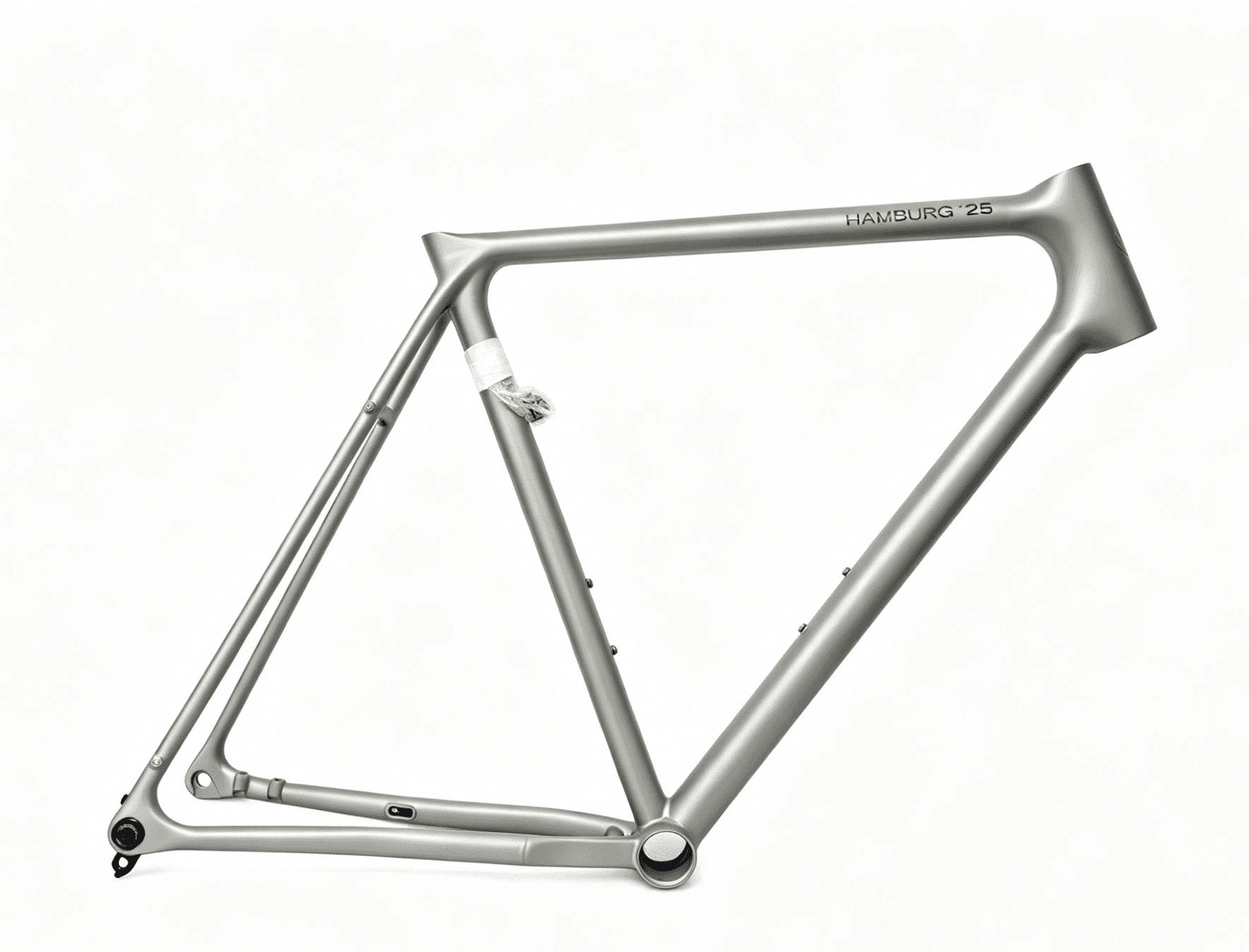

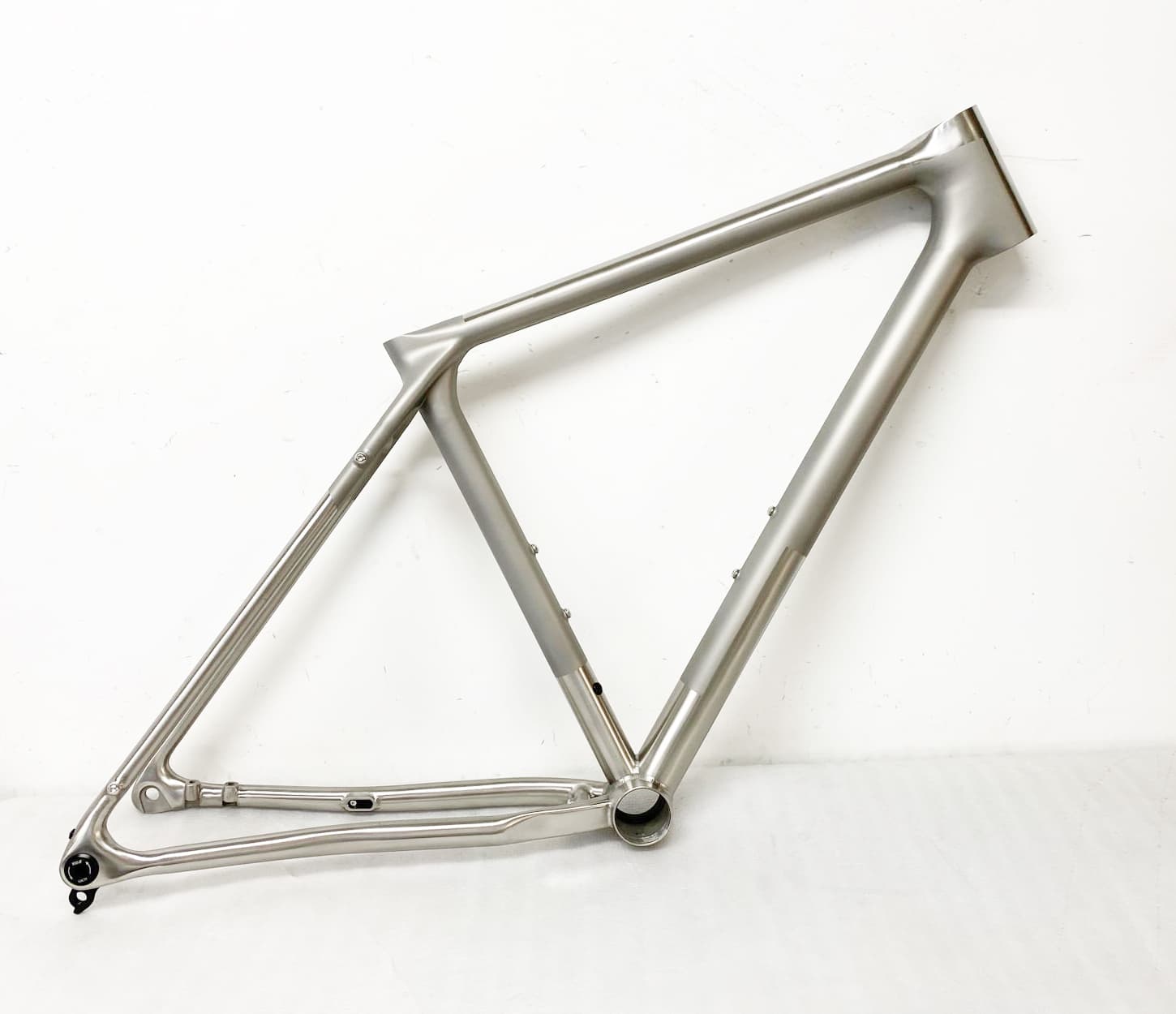

Gravel3dr03 Titanium Frame
Explore a titanium gravel build with the Gravel3dr03 frame. Compare the geometry and fork options, then share your planned wheels, tyres and drivetrain when requesting a quote.
700C Frameset | 50C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles

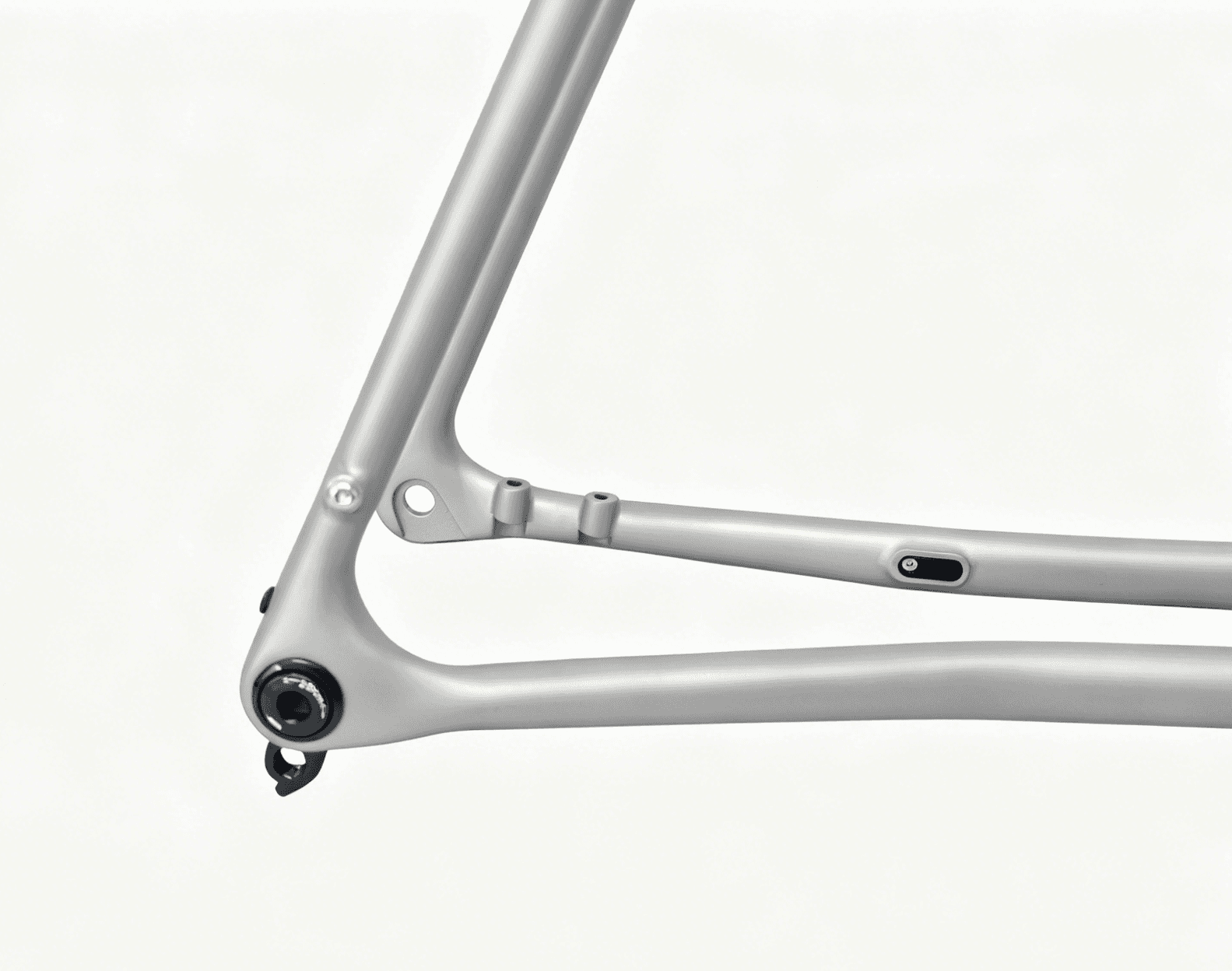

- X-12 Drop out for UDH
Technical
Frame
Modus 3Al-2.5V titanium frame
1-1/8" to 11/2"; 52/52

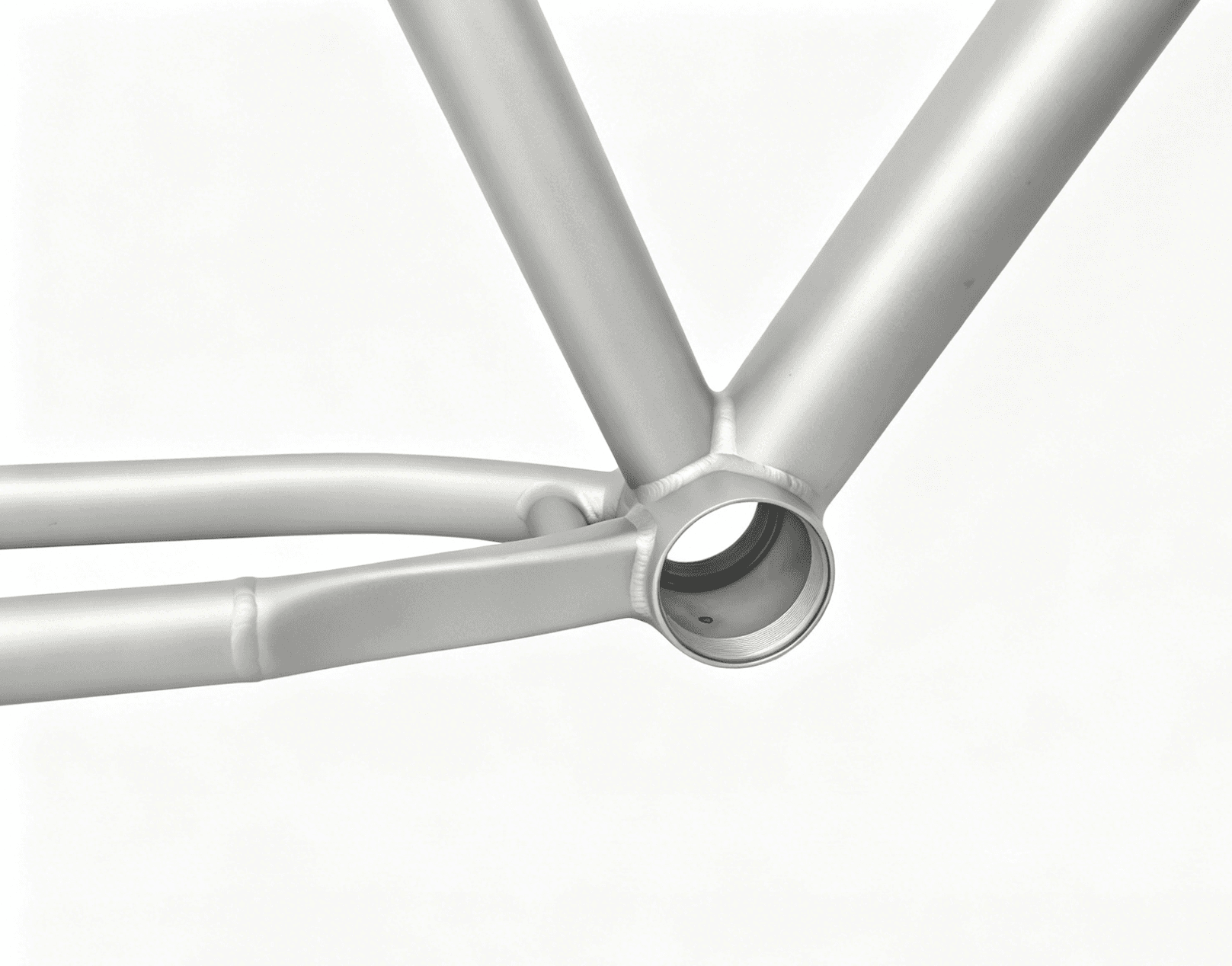

T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 50/34 Shimano
Max 700C tire = up to 50c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Classic & Enduring | Titanium endurance frame built for all-day comfort.
Geometry
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Body Height(cm) | 148-157cm | 154-163cm | 160-170cm | 166-178cm | 175-187cm | 184-194cm | 190-200cm |
| TT Effective length(mm) | 529 | 541 | 554 | 563.9 | 574 | 589 | 604 |
| Seat tube Length(mm) | 455.4 | 500 | 530 | 560 | 580 | 595 | 615 |
| Seat tube angle(°) | 73 | 73 | 73 | 73 | 73 | 73 | 73 |
| Head Tube Length(mm) | 122 | 125 | 136 | 148 | 150 | 170 | 210 |
| Head Tube Angle(°) | 71 | 71 | 71.5 | 71.5 | 72 | 72 | 72 |
| BB drop(mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Chainstay Length(mm) | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Fork Length(mm) | 395 | 395 | 395 | 395 | 395 | 395 | 395 |
| Fork offset(mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Reach(mm) | 370.8 | 380.5 | 390.2 | 400.1 | 410.1 | 420.1 | 430.1 |
| Stack(mm) | 547 | 549.8 | 561 | 571.9 | 585 | 604 | 642 |
