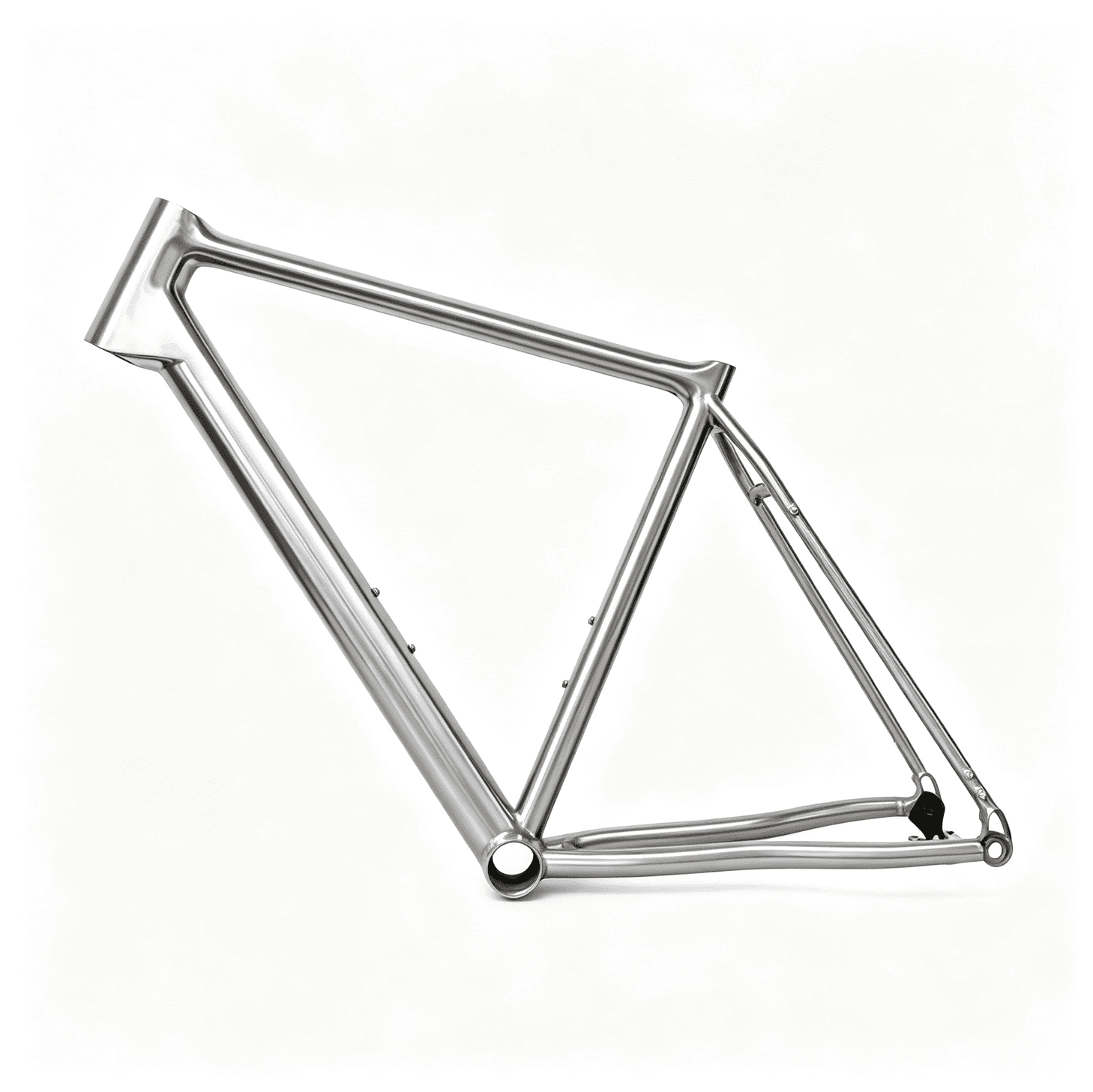

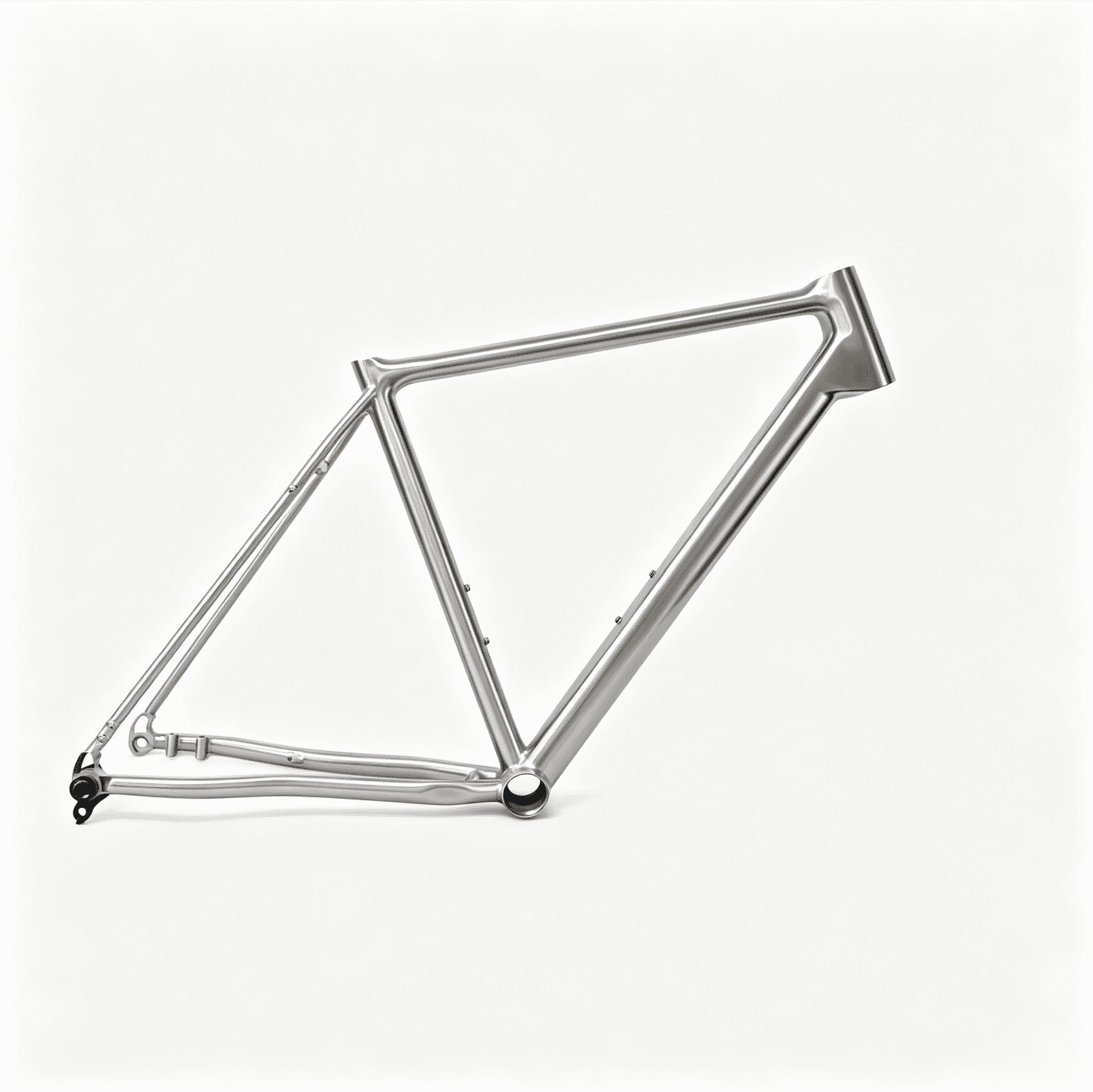

INNOVATION Titanium Frame
700C Frameset | 55C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles

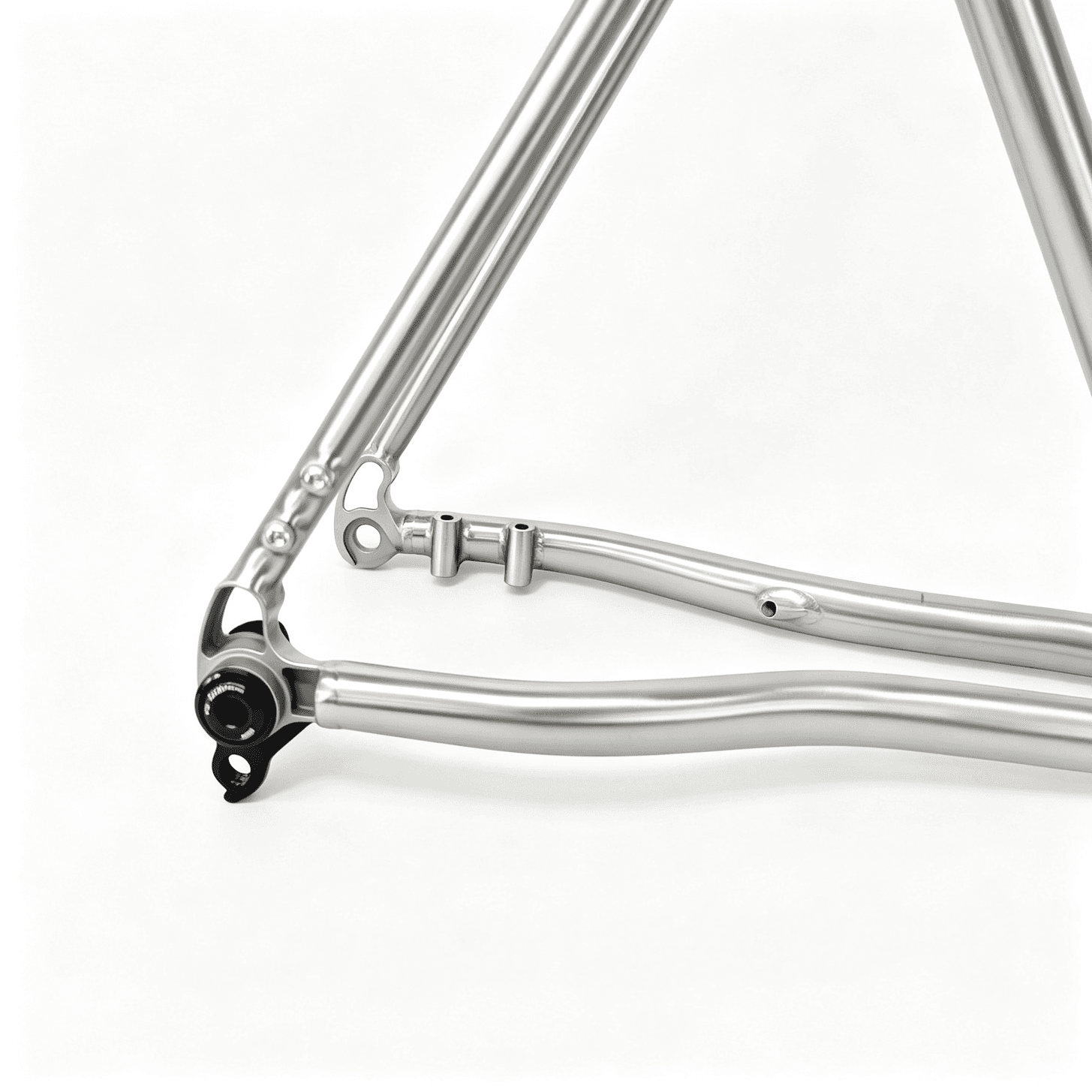

- X-12 Drop out for UDH
Technical
Frame
Modus 3Al-2.5V titanium frame
1-1/2" to 11/2"; 52/52

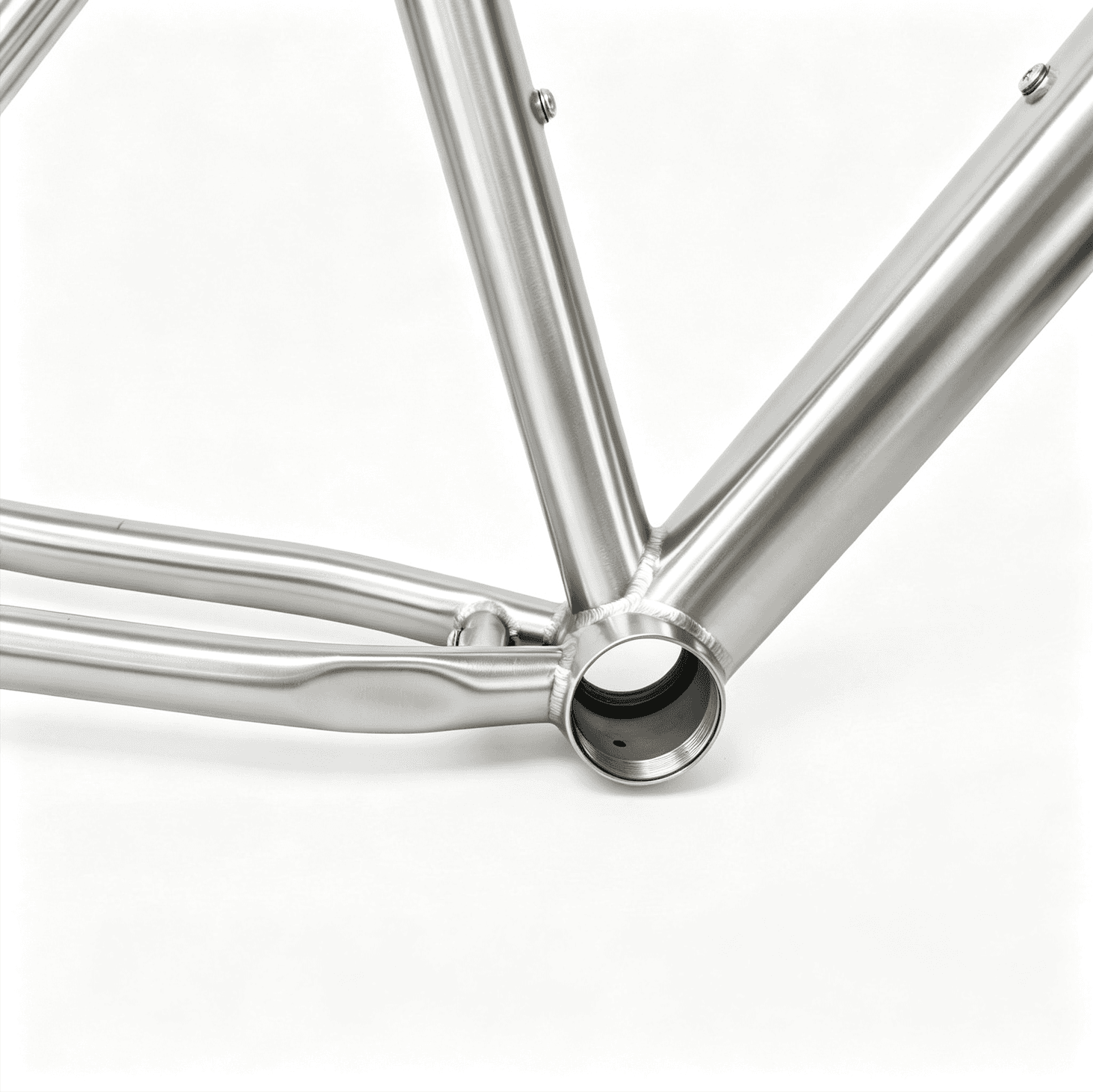

T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
42 Shimano
Max 700C tire = up to 55c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept

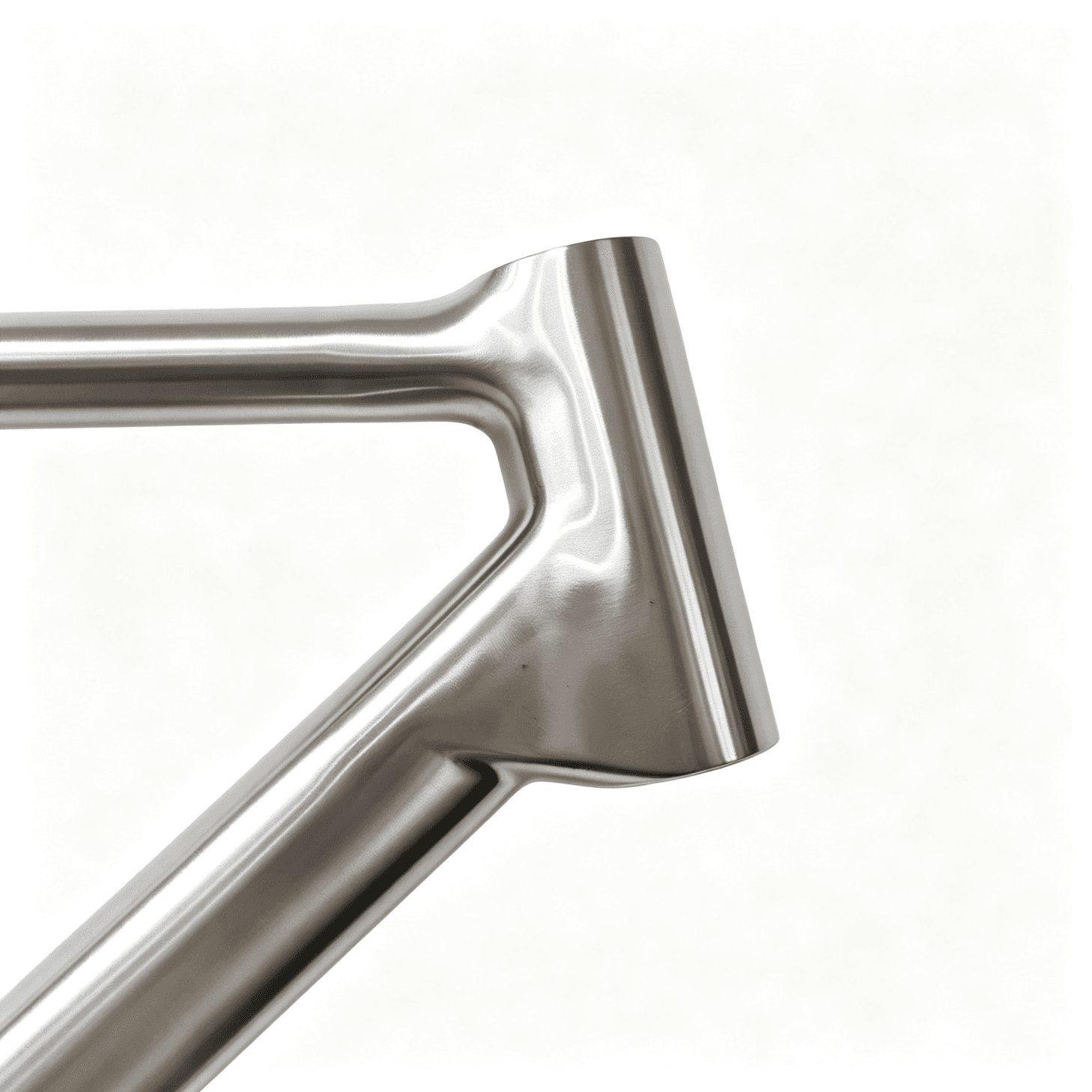

- 013D printed head tube and seat tube Lugs
- 02Tires:Max 700c*50mm(2X); 700C*55mm(1X)
- 03With maximum mounting points for bags, bottles and racks
- 04Tire clearance 55mm, for more comfort on gravel, forest paths
Geometry
| Size | 2XS | XS | S | M | L | XL | 2XL | 3XL |
|---|---|---|---|---|---|---|---|---|
| Body Height(cm) | 148-157cm | 154-163cm | 160-170cm | 166-178cm | 175-187cm | 184-194cm | 190-200cm | 195-205 |
| TT Effective length(mm) | 520 | 530 | 540 | 550 | 565 | 585 | 605 | 625 |
| Seat tube Length(mm) | 440 | 460 | 480 | 500 | 520 | 545 | 570 | 600 |
| Seat tube angle(°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Length(mm) | 120 | 125 | 130 | 140 | 150 | 170 | 190 | 210 |
| Head Tube Angle(°) | 69 | 70 | 71.5 | 71.5 | 72 | 72 | 72 | 72 |
| BB drop(mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Chainstay Length(mm) | 435 | 435 | 435 | 435 | 435 | 435 | 435 | 435 |
| Fork Length(mm) | 403 | 403 | 403 | 403 | 403 | 403 | 403 | 403 |
| Fork offset(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Reach(mm) | 362 | 369 | 376 | 383 | 395 | 409 | 423 | 438 |
| Stack(mm) | 535 | 543 | 554 | 563 | 575 | 594 | 613 | 632 |
