BACK TO COLLECTION / GRAVEL

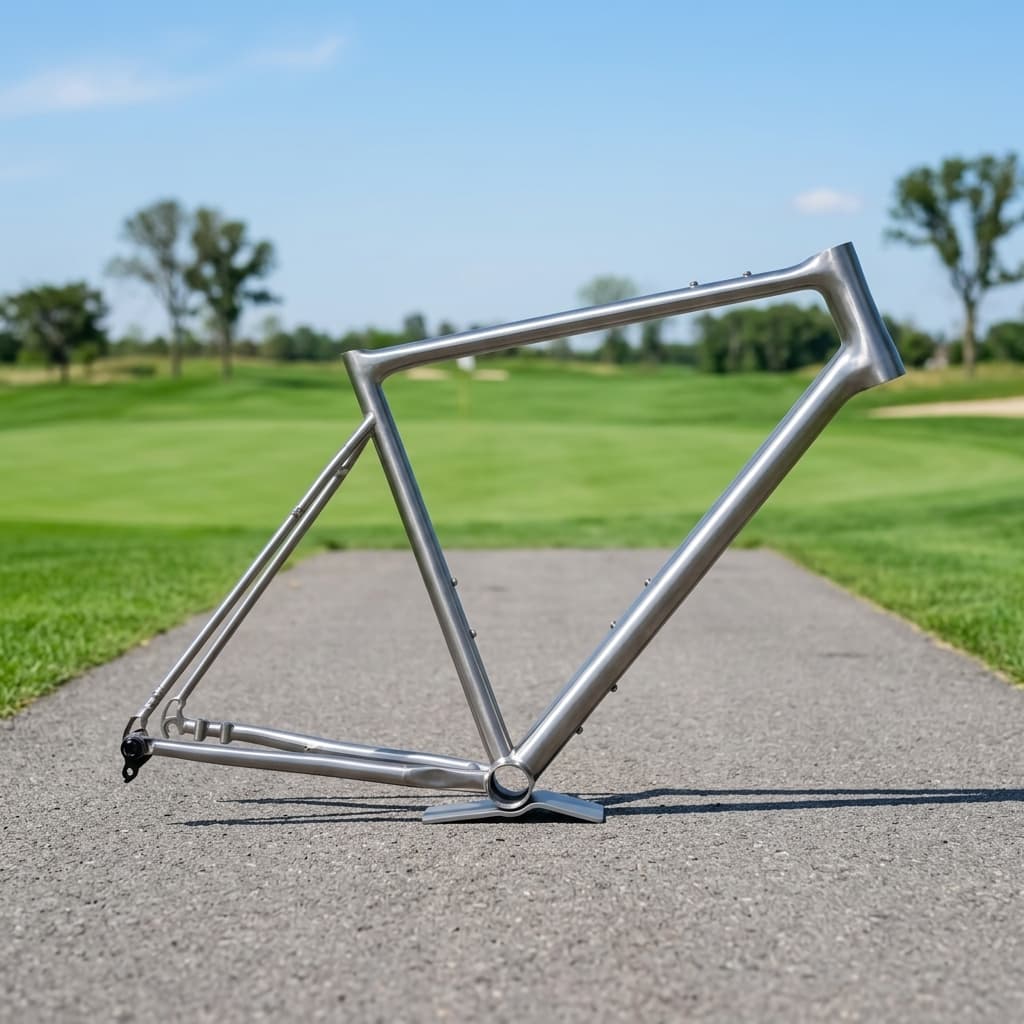

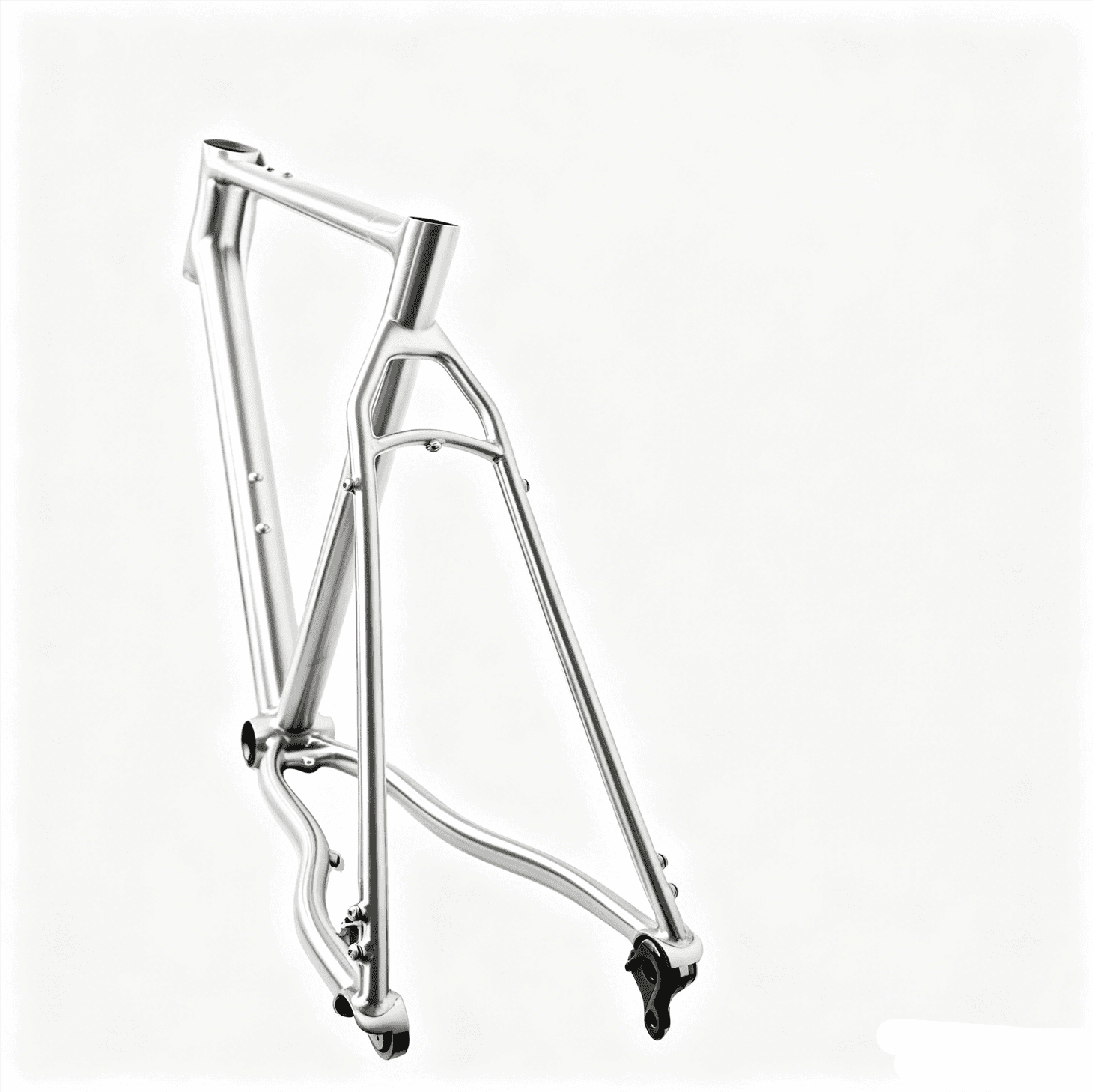

SMOOTH -A Titanium Frame
700C Frameset | 50C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.

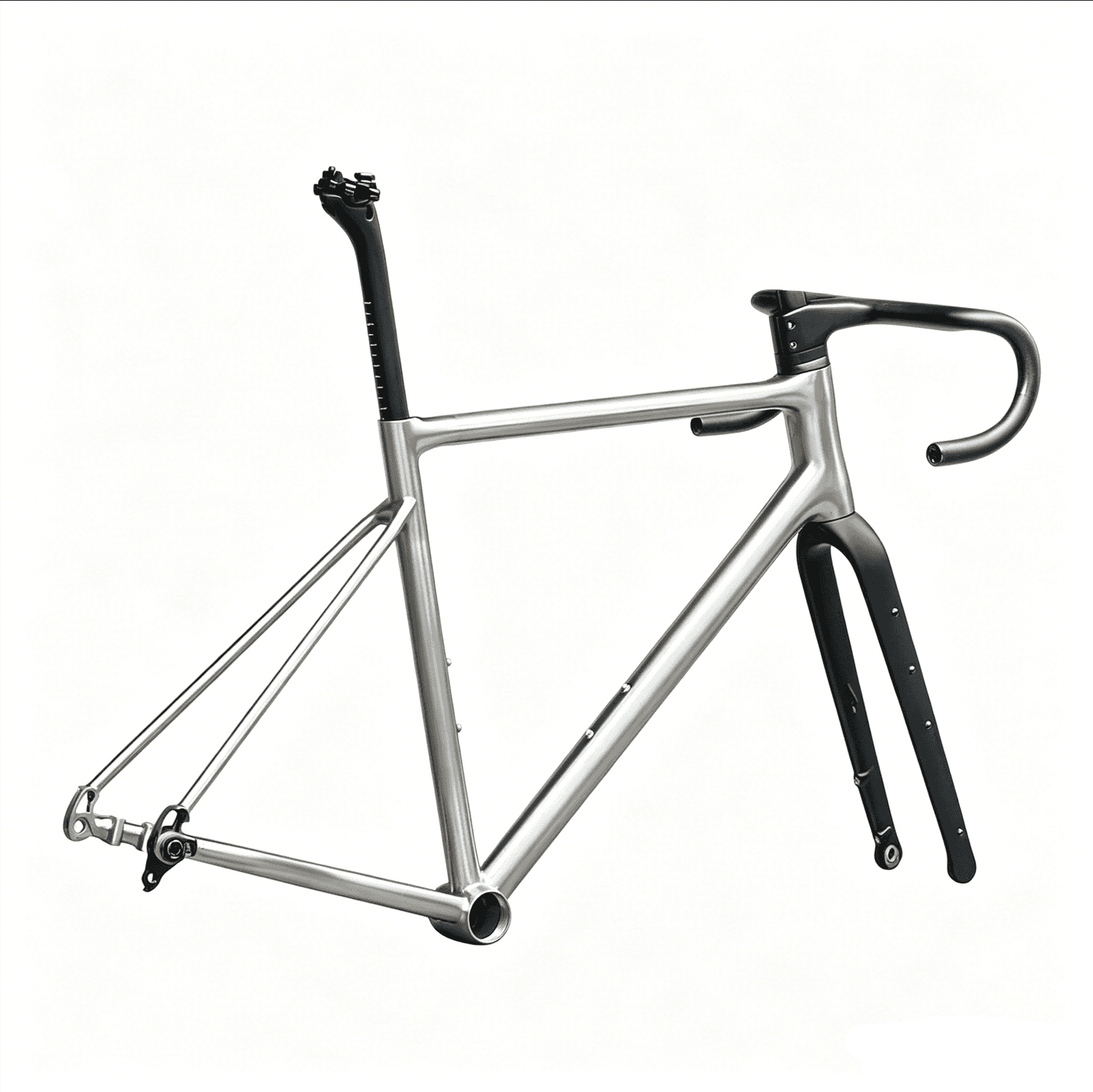

Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles
- X-12 Drop out for UDH
Technical
Frame
Modus 3Al-2.5V titanium frame

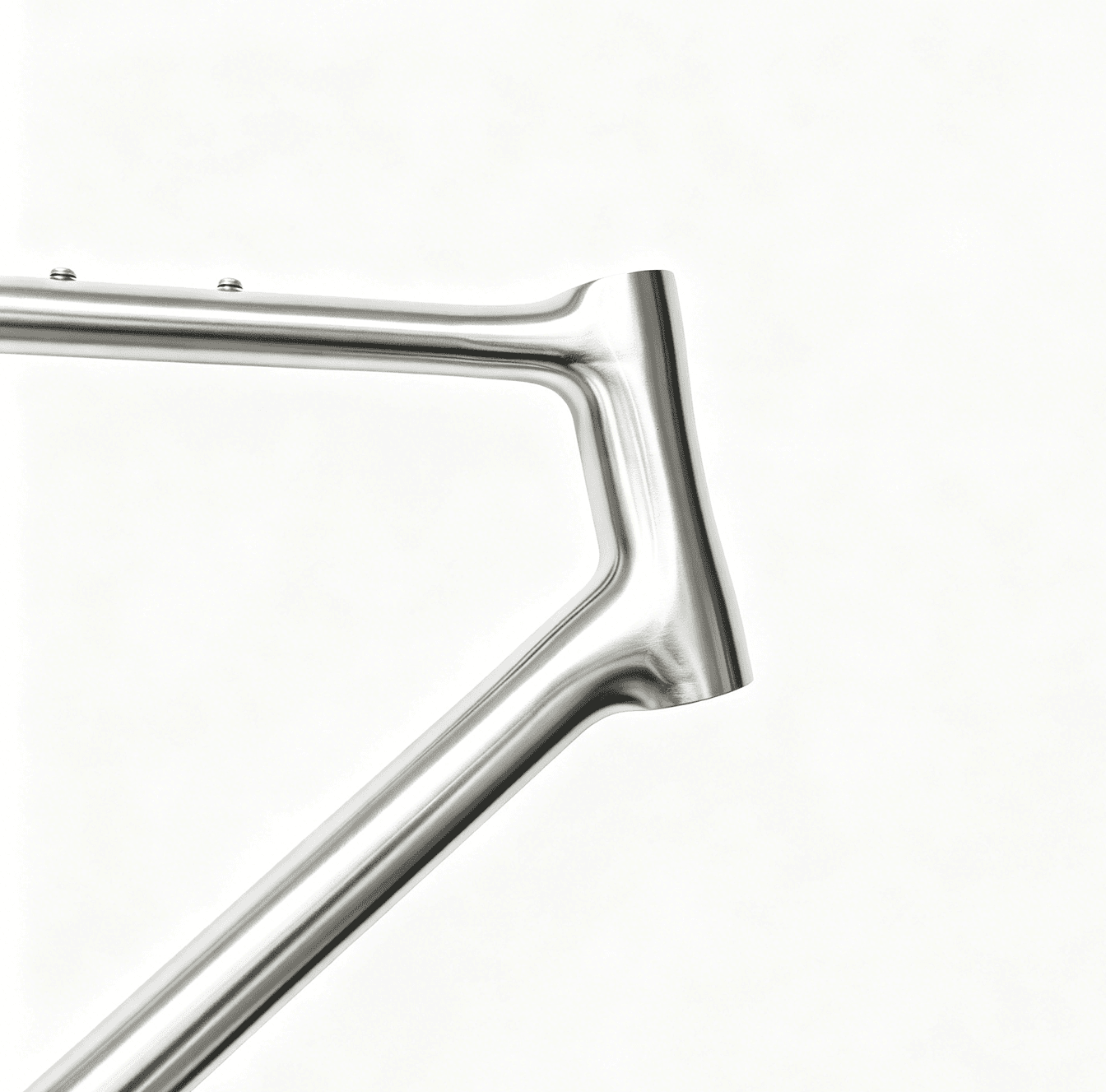

1-1/2" to 11/2"; 52/52

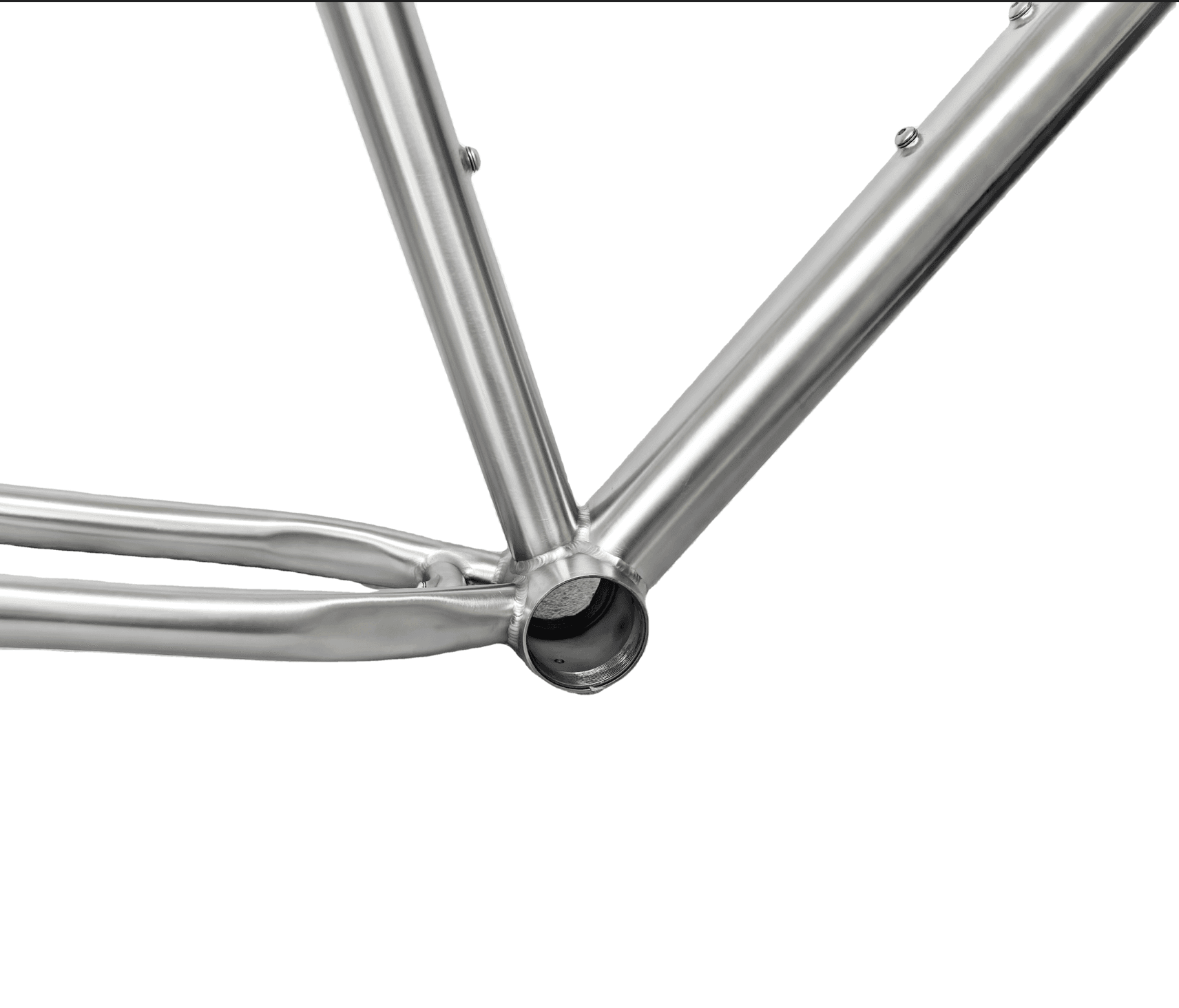

T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 48/31 Shimano
46 shimano
Max 700C tire = up to 50c
1600 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg
Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Type A: The geometry design for more adventure
- 02Multi-day bike packing or all day exploration on rough terrain
- 03With maximum mounting points for bags, bottles and racks
- 04Tire clearance 50mm, for more comfort on gravel, forest paths
- 05Upright comfortable riding position for long days
Geometry
| Size | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Body Height(cm) | 148-157cm | 154-163cm | 160-170cm | 166-178cm | 175-187cm | 184-194cm | 190-200cm |
| TT Effective length(mm) | 530 | 545 | 560 | 580 | 600 | 620 | 640 |
| Seat tube Length(mm) | 470 | 500 | 530 | 550 | 570 | 590 | 610 |
| Seat tube angle(°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Length(mm) | 120 | 135 | 150 | 170 | 190 | 210 | 230 |
| Head Tube Angle(°) | 70.5 | 70.5 | 70.5 | 71 | 71 | 71 | 71 |
| BB drop(mm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Chainstay Length(mm) | 435 | 435 | 435 | 435 | 435 | 435 | 435 |
| Fork Length(mm) | 403 | 403 | 403 | 403 | 403 | 403 | 403 |
| Fork offset(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Reach(mm) | 367 | 378 | 389 | 403 | 417 | 432 | 446 |
| Stack(mm) | 550 | 564 | 578 | 599 | 618 | 637 | 656 |
