Gravel G50 Titanium Frame
700C Frameset | 50C Tire Clearance
View Geometry chartAdd your configuration, then send a quote request from the cart.
Frame specs
- Modus 3Al-2.5V titanium frame
- Carbon fork
- Modus Carbon SL seatpost
- Modus Aluminum seatpost collar
- Aluminum thru axles
- X-12 Drop out
Technical
Frame

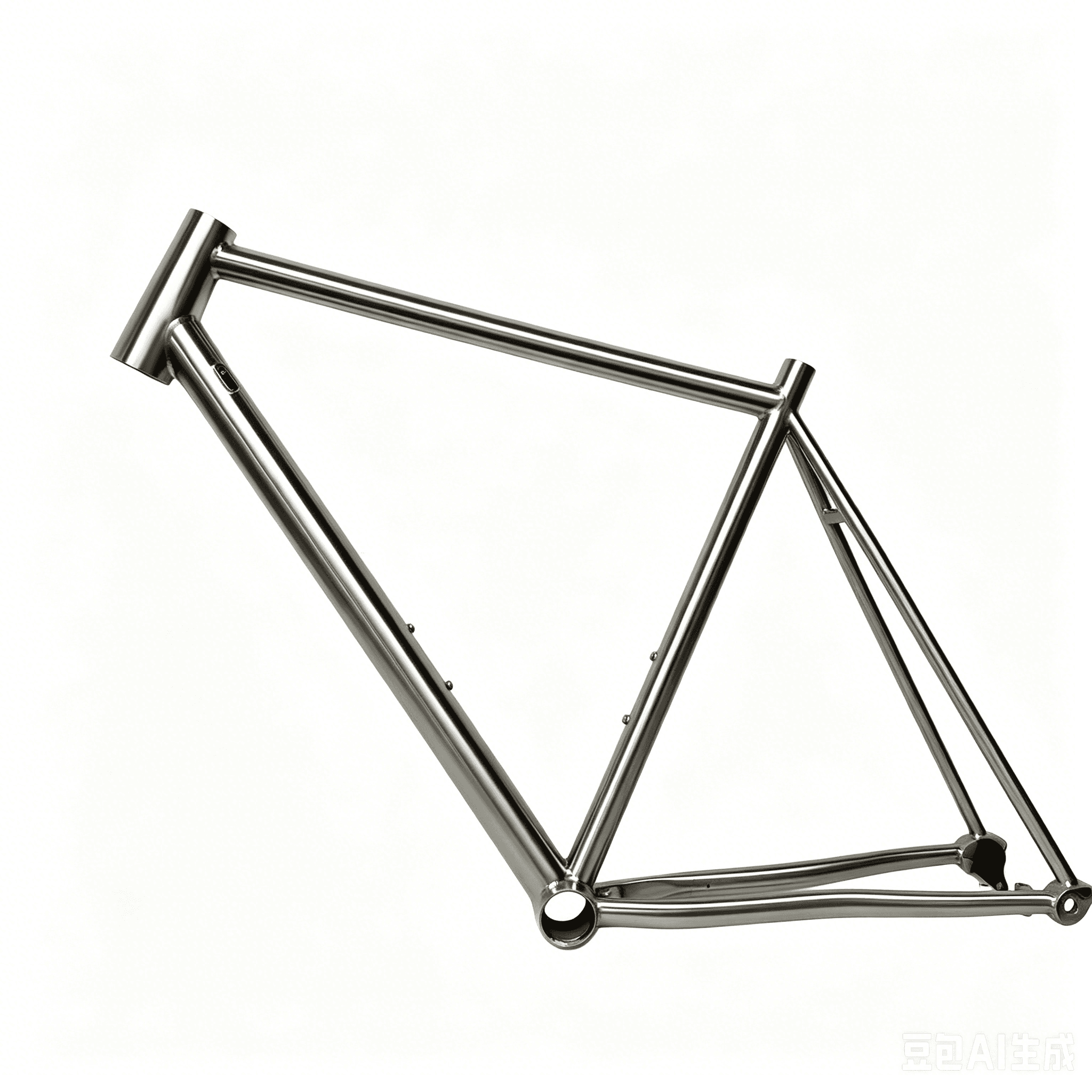

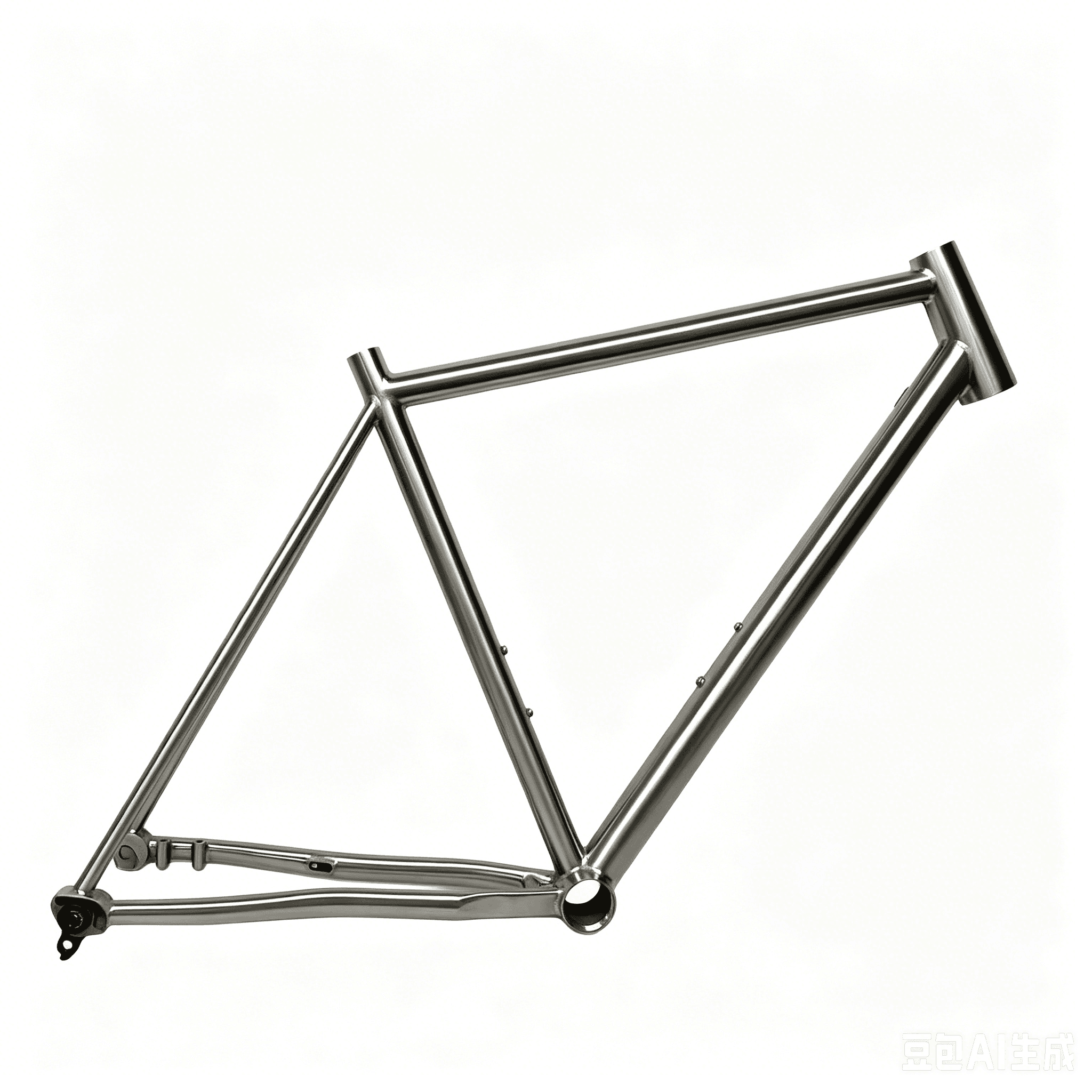

Modus 3Al-2.5V titanium frame

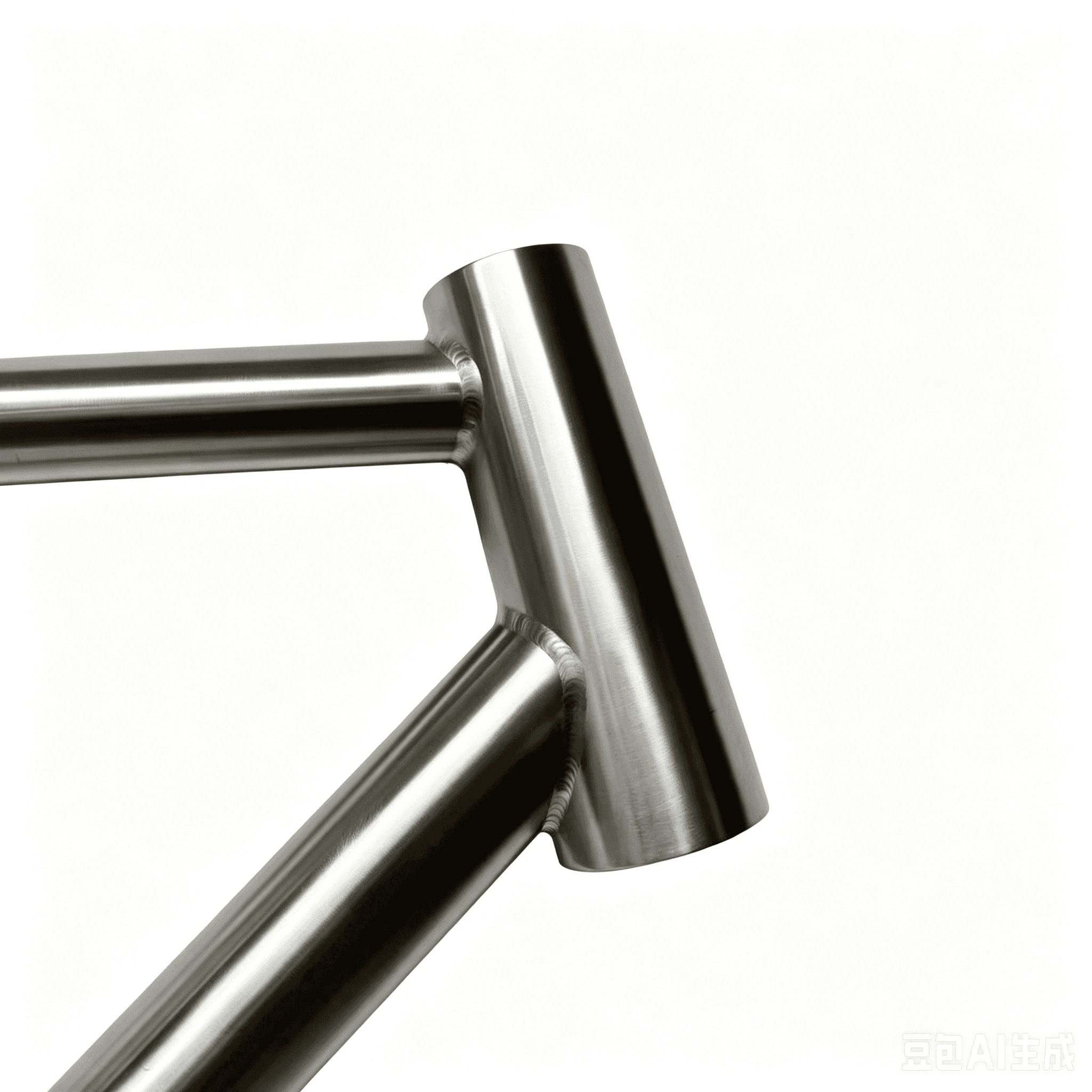

1-1/8" to 11/2"; 42/52

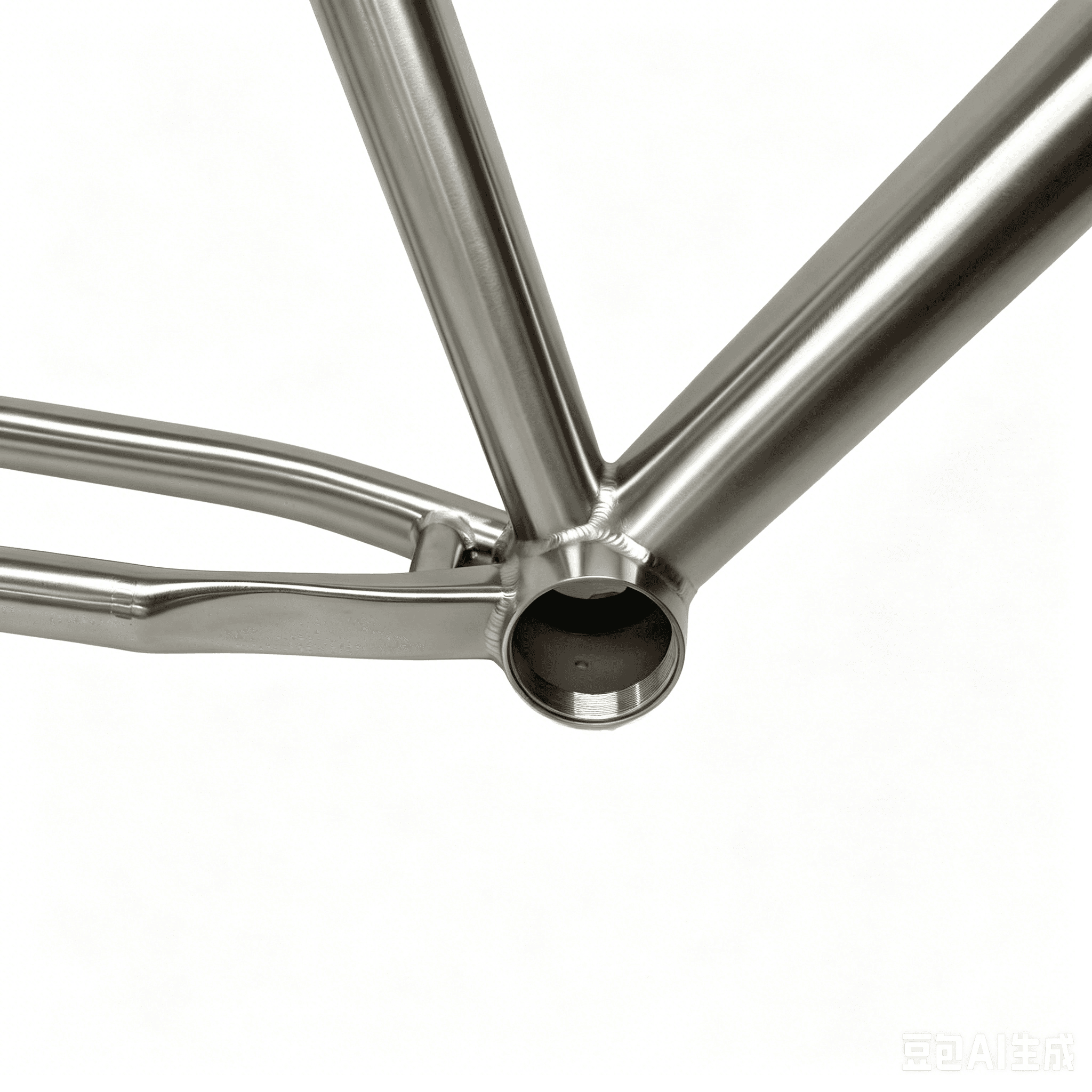

T47-68
Electronic and mechanical compatible
31.8mm front derailleur hanger size
Max chainring
- 42 Shimano
Max 700C tire = up to 50c
1650 grams (Size M)
Weight
Rider weight limit = 275 lb / 125 kg

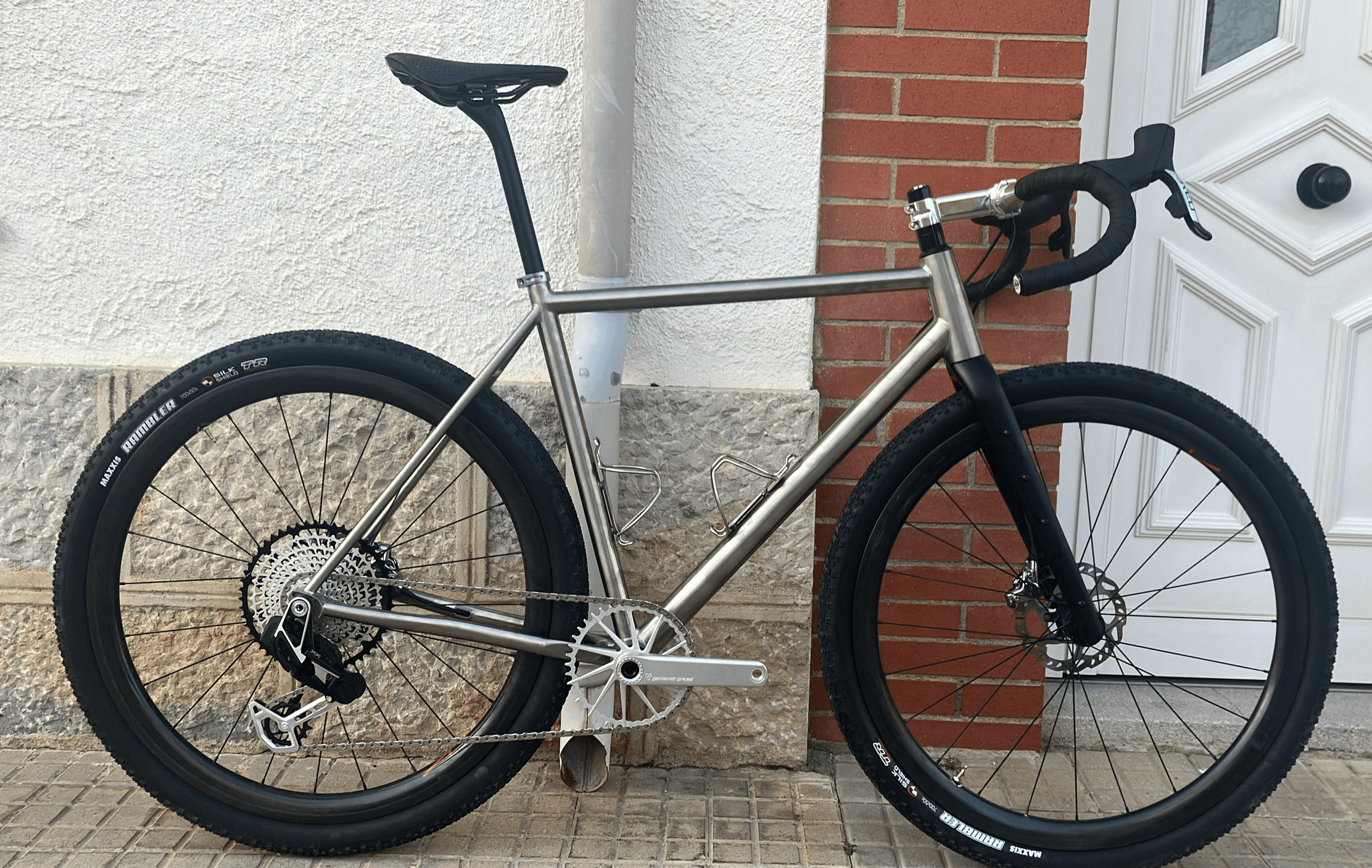

Builds typically weigh 16 to 20 lbs depending on groupset, wheel, tire, and component choice.
Warranty
Our frames with 5 years warranty, fork and seat post with 2 years warranty.
Design concept
- 01Titanium construction meets 50mm tire capability.
- 02Designed for rugged trails and long expeditions
- 03 it balances strength and comfort for every off-road journey
Geometry
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Body Height(cm) | 165-170cm | 170-175cm | 175-180cm | 180-185cm | 185-190cm | 190-195cm |
| TT Effective length(mm) | 512 | 539 | 549 | 568 | 582 | 599 |
| Seat tube Length(mm) | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat tube angle(°) | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Head Tube Length(mm) | 100 | 115 | 130 | 150 | 170 | 190 |
| Head Tube Angle(°) | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB drop(mm) | 74 | 74 | 72 | 72 | 72 | 72 |
| Chainstay Length(mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| Fork Length(mm) | 398 | 398 | 398 | 398 | 398 | 398 |
| Fork offset(mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Reach(mm) | 375 | 382 | 388 | 397 | 405 | 405 |
| Stack(mm) | 530 | 547 | 560 | 578 | 598 | 621 |
